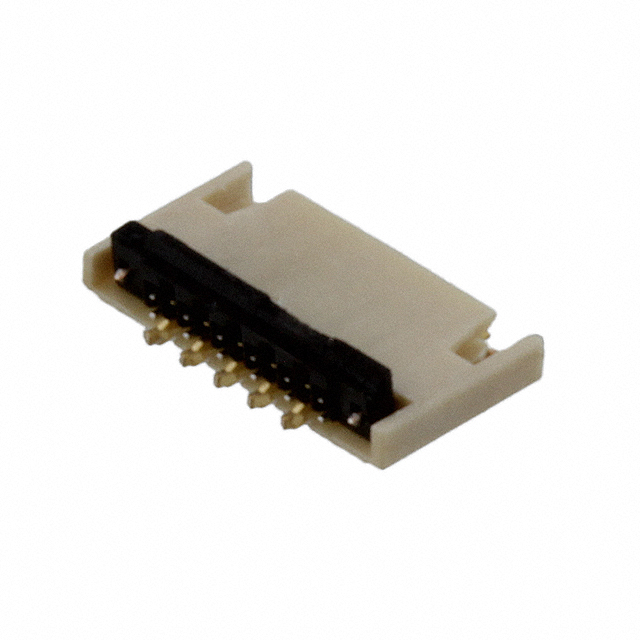

FH42-11S-0.3SHW(99)
CONN FPC TOP 11POS 0.3MM R/AManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
11 Position FPC Connector Contacts, Top 0.012"" (0.30mm) Surface Mount, Right Angle
Additional Information
Series: FH42RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 30V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 11 |
| Pitch | 0.012"" (0.30mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.065"" (1.65mm) |
| Locking Feature | Flip Lock, Backlock |
| Material Flammability Rating | - |
| Actuator Material | Polyamide (PA), Nylon |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.12mm |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Notched |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Top |
