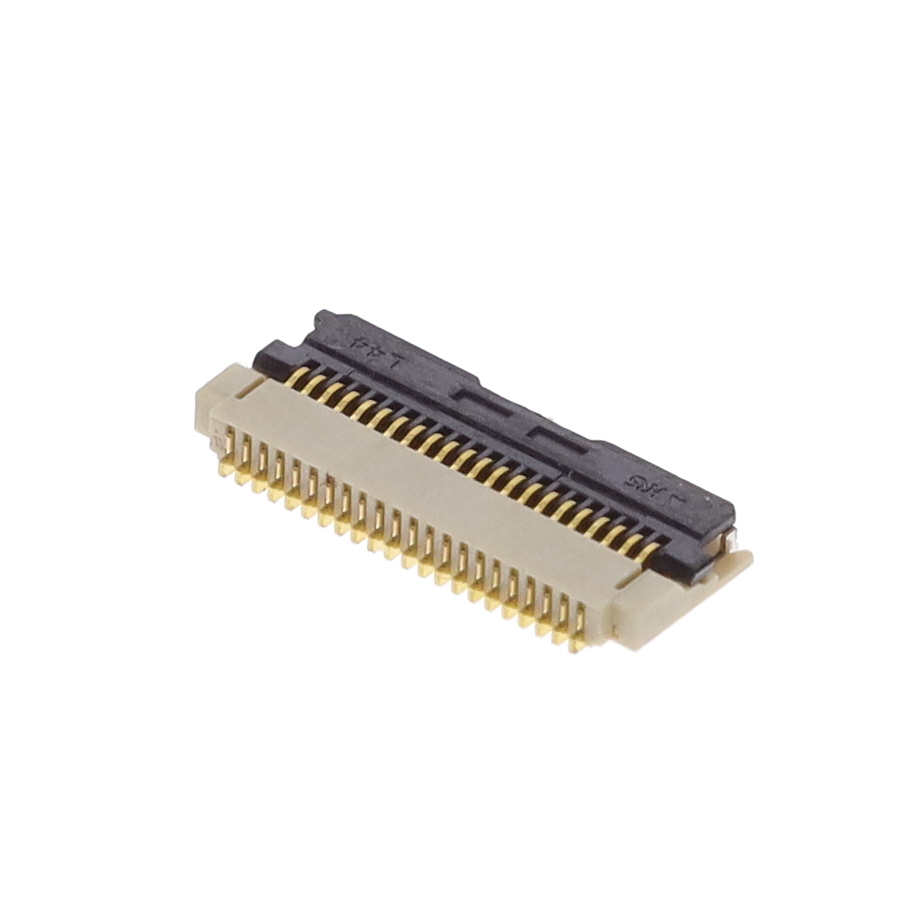

FH29DJ-44S-0.2SHW(05)
CONN FFC FPC 0.2MM SMDManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
44 Position FPC Connector Contacts, Bottom 0.008"" (0.20mm) Surface Mount, Right Angle
Additional Information
Series: FH29RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 40V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 44 |
| Pitch | 0.008"" (0.20mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.047"" (1.20mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Notched or Tabbed |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
Request a Quote
