FH26-45S-0.3SHW(05)
CONN FPC BOTTOM 45POS 0.3MM R/AManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
Hirose Electric Co Ltd FH26 series connector, part number FH26-45S-0-3SHW-05-, is a 45-position FPC connector designed for surface mount, right-angle applications. This component features a 0.30mm pitch and a bottom-contact configuration with a Zero Insertion Force (ZIF) mechanism and a flip-lock actuator for secure mating. The contacts are constructed from phosphor bronze with a gold finish, ensuring reliable conductivity. The housing is made of UL94 V-0 rated Liquid Crystal Polymer (LCP), and the actuator utilizes Polyamide (PA). With a height of 1.00mm above the board and compatibility with FPC thicknesses of 0.20mm, this connector is suitable for space-constrained designs. Operating within a temperature range of -55°C to 85°C and rated for 30V, the FH26-45S-0-3SHW-05- finds application in consumer electronics, automotive systems, and industrial equipment. It is supplied on tape and reel.
Additional Information
Series: FH26RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 30V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 45 |
| Pitch | 0.012"" (0.30mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.039"" (1.00mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Polyamide (PA), Nylon |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Cable End Type | Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
Request a Quote
Clients Also Buy

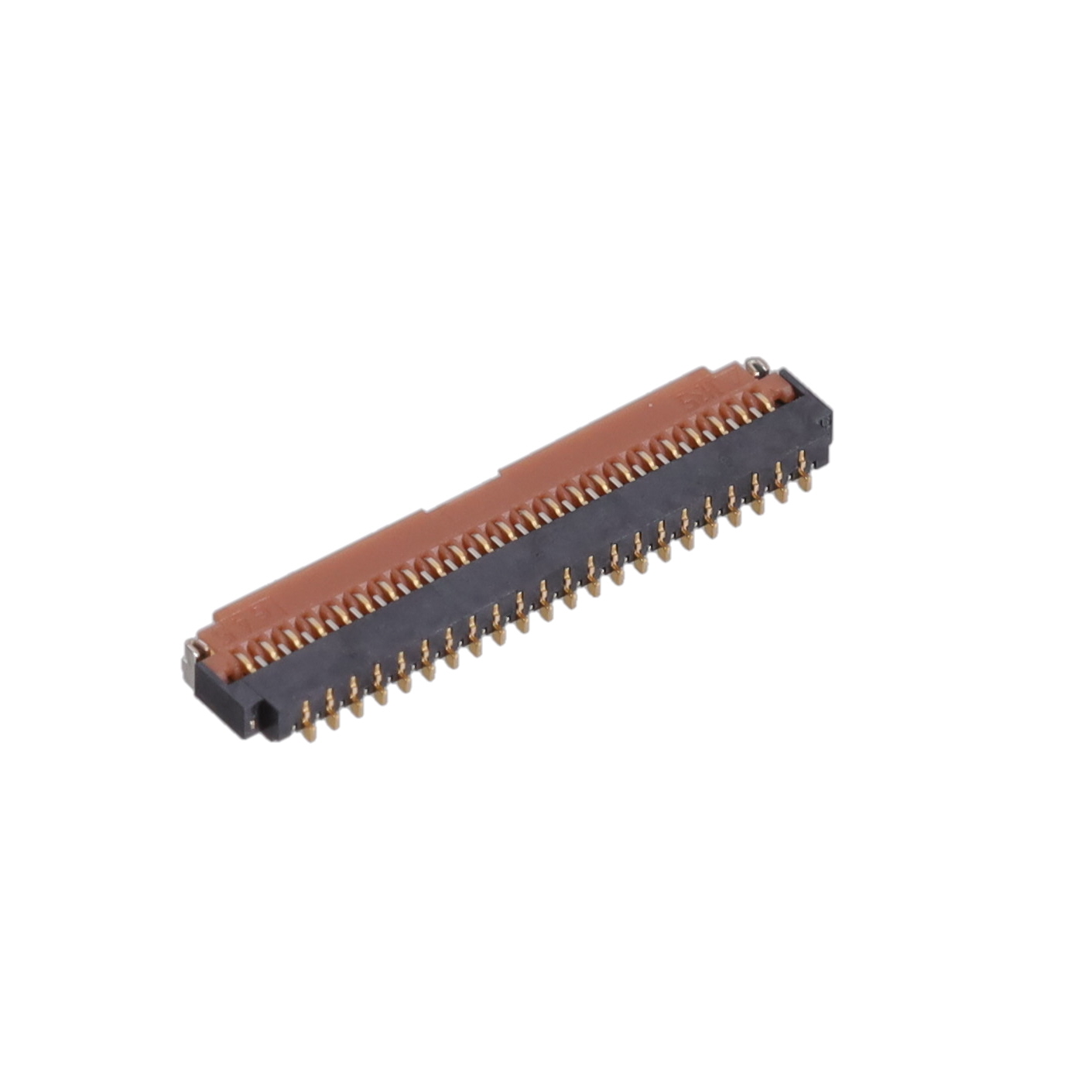

FH26W-45S-0.3SHW(97)
CONN FPC BOTTOM 45POS 0.3MM R/A

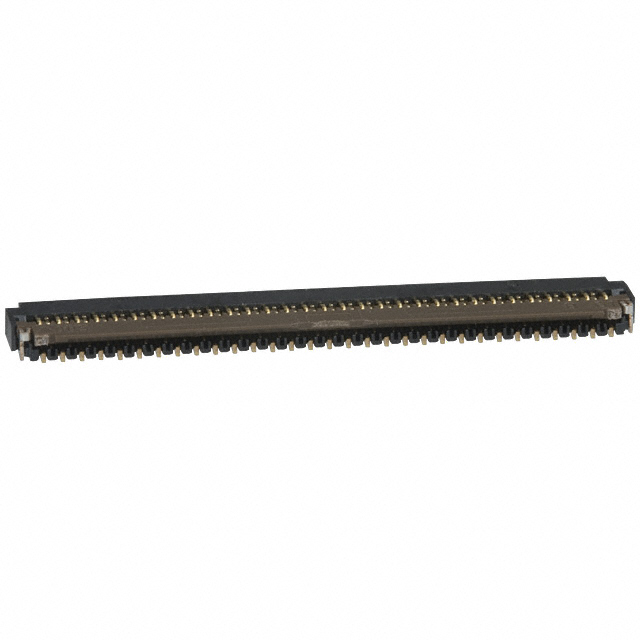

FH26W-57S-0.3SHW(60)
