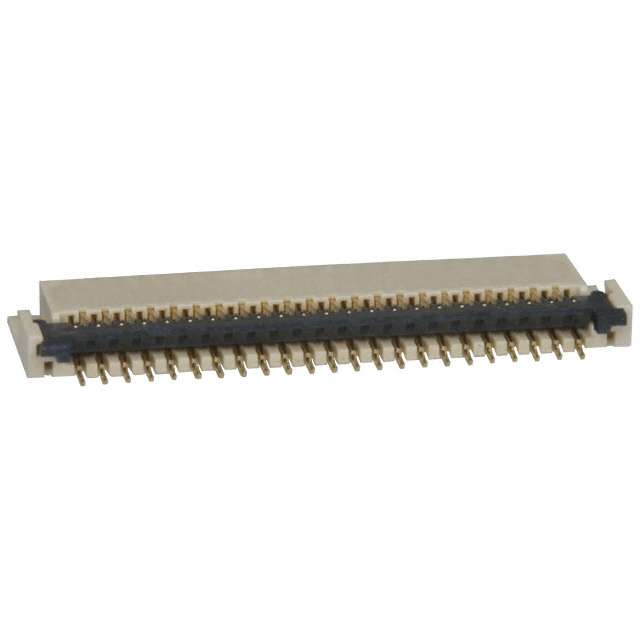

FH23-45S-0.3SHW(05)
CONN FPC BOTTOM 45POS 0.3MM R/AManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
45 Position FPC Connector Contacts, Bottom 0.012"" (0.30mm) Surface Mount, Right Angle
Additional Information
Series: FH23RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Low Insertion Force (LIF) |
| Packaging | Tape & Reel (TR) |
| Contact Finish | Gold |
| Voltage Rating | 30V |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 45 |
| Pitch | 0.012"" (0.30mm) |
| Operating Temperature | -55°C ~ 85°C |
| Termination | Solder |
| Height Above Board | 0.049"" (1.25mm) |
| Locking Feature | Flip Lock |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.20mm |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Cable End Type | Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Contacts, Bottom |
Request a Quote
