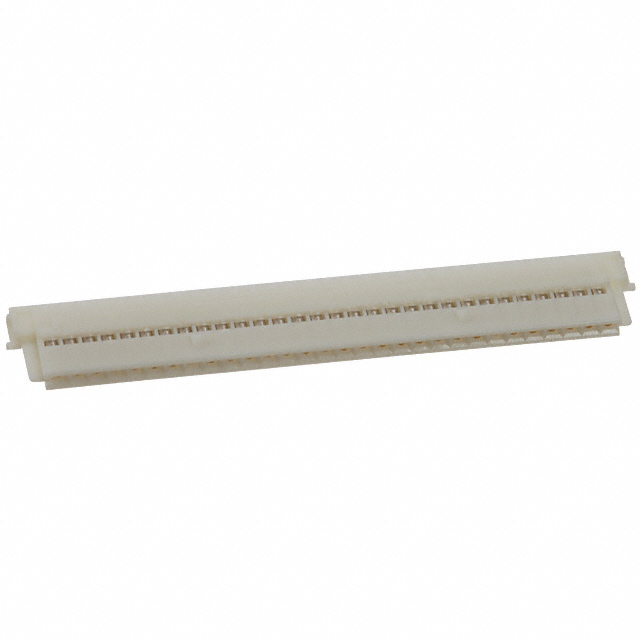

DF19G-30S-1F(05)
CONN FPC RCPT 30POS 1MMManufacturer: Hirose Electric Co Ltd
Categories: FFC, FPC (Flat Flexible) Connector Assemblies
Quality Control: Learn More
30 Position FPC Connector Receptacle 0.039"" (1.00mm) Free Hanging (In-Line)
Additional Information
Series: DF19RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BulkDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | - |
| Packaging | Bulk |
| Contact Finish | Gold |
| Voltage Rating | 100V |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 30 |
| Pitch | 0.039"" (1.00mm) |
| Operating Temperature | -35°C ~ 85°C |
| Termination | IDC |
| Height Above Board | - |
| Locking Feature | - |
| Material Flammability Rating | UL94 V-0 |
| Actuator Material | - |
| Contact Material | Phosphor Bronze |
| FFC, FCB Thickness | 0.14mm |
| Housing Material | Polyamide (PA), Nylon |
| Cable End Type | Tapered |
| Flat Flex Type | FPC |
| Connector/Contact Type | Receptacle |
Request a Quote
Clients Also Buy
DF19-30S-1C
CONN PLUG HSG 30POS 1.00MM

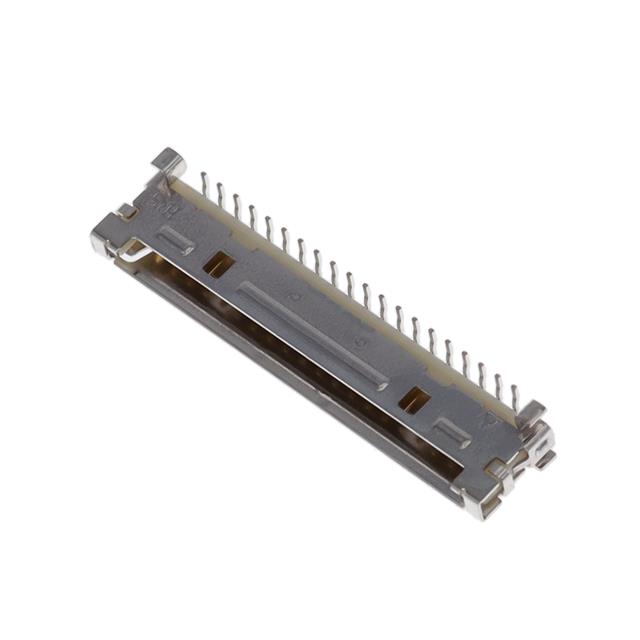

DF19-20P-1V(52)
CONN HEADER SMD 20POS 1MM

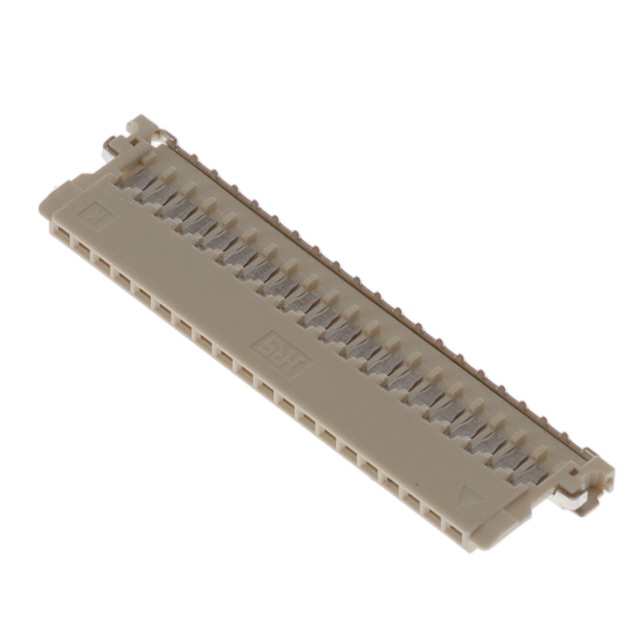

DF19G-20S-1SD(06)
