PCN13-96S-2.54DSA
CONN DIN RCPT 96POS PCB GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More

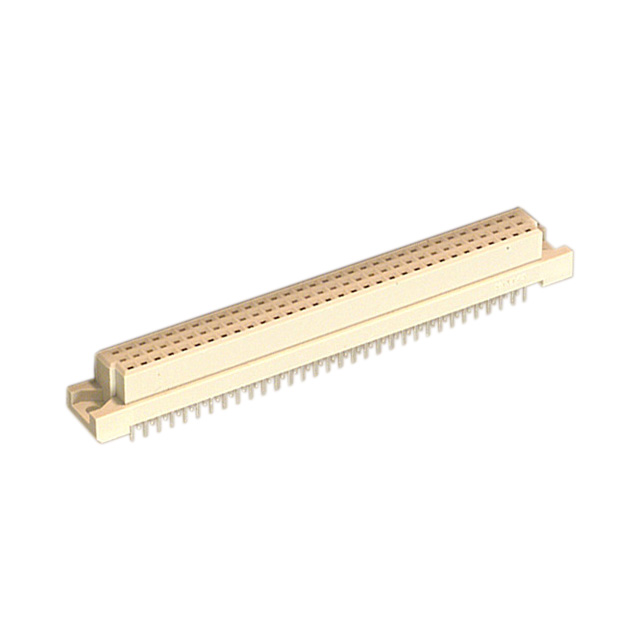

The Hirose Electric Co Ltd PCN13-96S-2-54DSA is a 96-position DIN 41612 Type C receptacle connector. This female socket assembly features gold plating for enhanced conductivity and durability, with a 2.54mm (0.100") pitch. The connector is designed for through-hole mounting and offers all 96 positions loaded across three rows, suitable for solder termination. Commonly utilized in telecommunications, industrial automation, and computing applications, this high-density connector facilitates robust board-to-board connections. The PCN13 series is recognized for its reliability in demanding environments. This component is supplied in tray packaging for efficient handling during manufacturing processes.
Additional Information
Series: PCN13RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Pitch | 0.100"" (2.54mm) |
| Style | C |
| Number of Positions Loaded | All |
| Termination | Solder |
| Level, Class | 1 |
| Contact Finish Thickness | - |
| Number of Rows | 3 |
