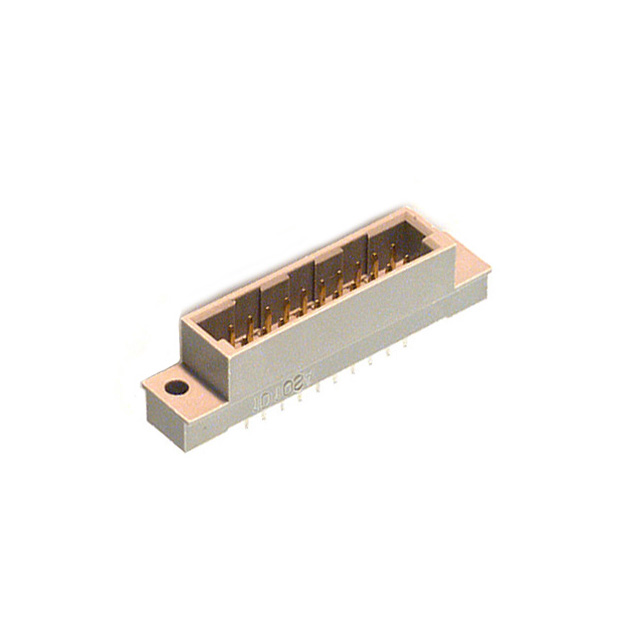

PCN10HB-20P-2.54DSA
CONN DIN HDR 20POS PCB GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More
Hirose Electric Co Ltd PCN10 series DIN 41612 connector header. This PCN10HB-20P-2-54DSA features 20 male pins with a gold contact finish, specified at 8.00µin (0.203µm) thickness. The header is designed for through-hole mounting with a 2.54mm (0.100") pitch. It offers two rows with all 20 positions loaded for a robust connection. This component is commonly utilized in industrial automation, telecommunications infrastructure, and control systems. Supplied in bulk packaging.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Style | - |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Number of Rows | 2 |
Request a Quote
