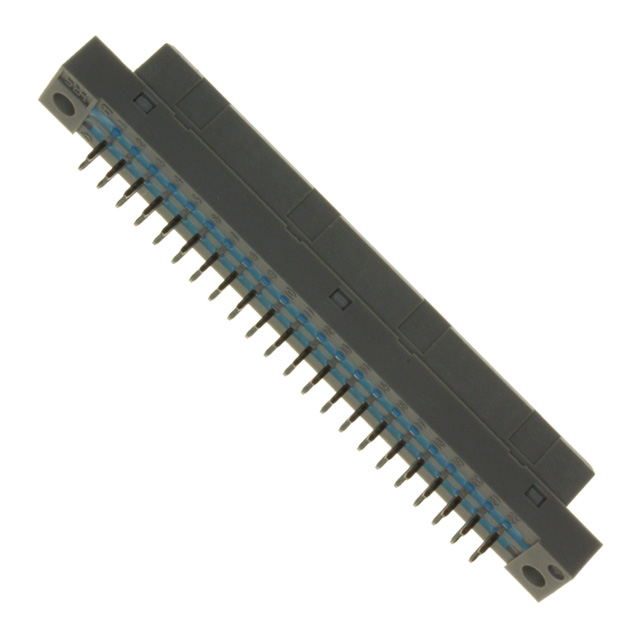

PCN10C-44S-2.54DSA
CONN DIN RCPT 44POS PCB GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More
Hirose Electric Co Ltd PCN10 Series DIN 41612 connector, part number PCN10C-44S-2-54DSA, is a 44-position receptacle with female sockets designed for PCB mounting. This through-hole component features gold plating for enhanced conductivity and reliability. It adheres to the DIN 41612 standard, specifically the Style B configuration, and offers a 2.54mm (0.100") pitch. The connector is suitable for applications in telecommunications, industrial automation, and automotive systems where robust and high-density interconnectivity is crucial. The PCN10C-44S-2-54DSA is supplied in tray packaging.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 44 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | - |
| Number of Rows | 2 |
