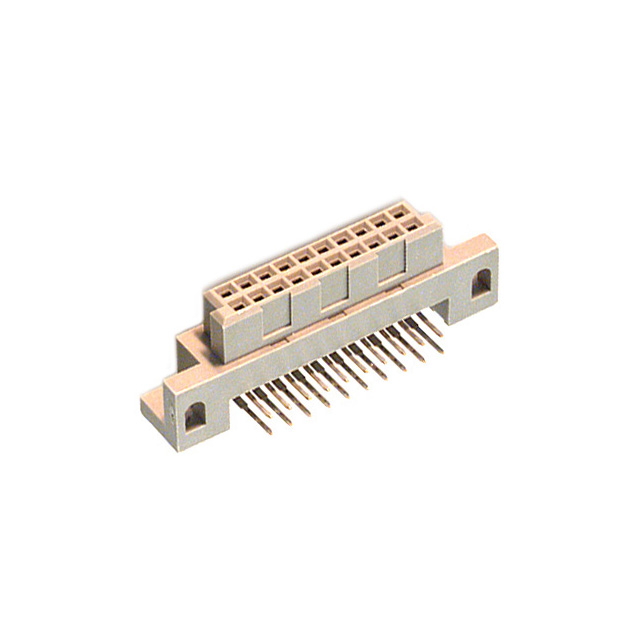

PCN10C-20S-2.54DS
CONN DIN RCPT 20POS PCB RA GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More
Hirose Electric Co Ltd PCN10 Series DIN 41612 connector, part number PCN10C-20S-2-54DS. This right-angle DIN receptacle features 20 positions with female sockets, all loaded. The contact finish is gold with a thickness of 8.00µin (0.203µm), suitable for demanding applications. With a 0.100" (2.54mm) pitch and through-hole mounting, this component offers a robust solder termination. It is designed for two rows, aligning with standard DIN 41612 configurations. This connector is commonly utilized in industrial automation, telecommunications infrastructure, and high-reliability computing systems. Supplied in tray packaging.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Style | - |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Number of Rows | 2 |
