PCN10A-20P-2.54DS
CONN DIN HDR 20POS PCB RA GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More

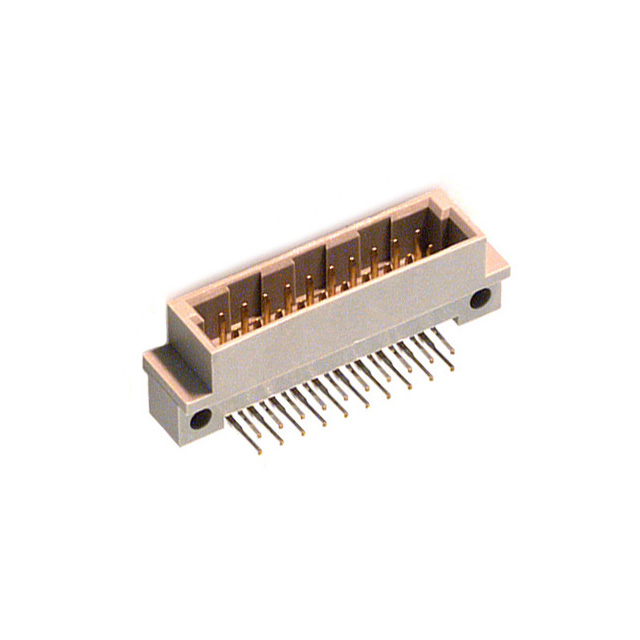

Hirose Electric Co Ltd PCN10 Series DIN 41612 connector, part number PCN10A-20P-2-54DS. This right-angle PCB header features 20 male gold-plated pins arranged in two rows. The contact finish boasts a thickness of 8.00µin (0.203µm) for enhanced conductivity and reliability. Designed for through-hole mounting, this connector utilizes the robust DIN 41612 Type B standard. The 2.54mm pitch ensures precise placement on printed circuit boards. This component is typically found in telecommunications, industrial automation, and data processing equipment. It is supplied in bulk packaging.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Number of Rows | 2 |
