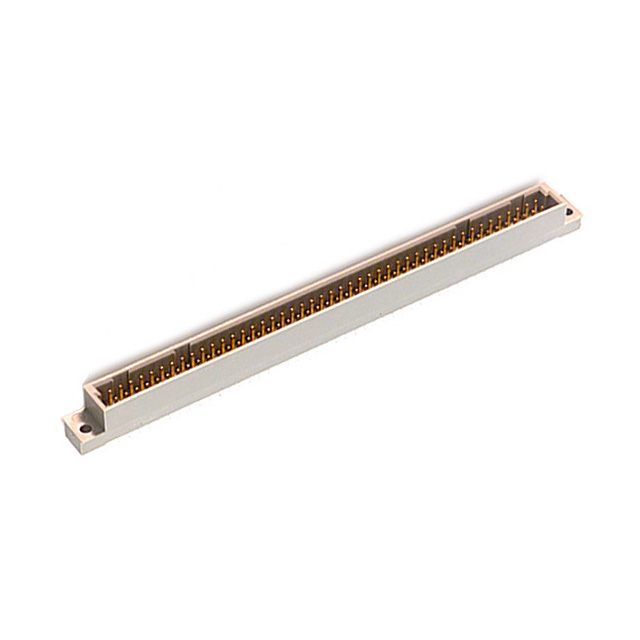

PCN10-90P-2.54DSA
CONN DIN HDR 90POS PCB GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More
The Hirose Electric Co Ltd PCN10-90P-2-54DSA is a 90-position DIN 41612 Type B male header connector designed for robust PCB mounting. Featuring gold-plated contacts for reliable connectivity and a 2.54mm pitch, this component offers a secure through-hole termination suitable for high-density applications. Its 90 loaded positions across two rows ensure maximum signal density. This connector is commonly utilized in industrial automation, telecommunications infrastructure, and test and measurement equipment where dependable signal integrity and environmental resilience are paramount. The PCN10 series from Hirose Electric Co Ltd exemplifies high-performance interconnect solutions.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 90 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | - |
| Number of Rows | 2 |
