PCN10-20P-2.54DSA
CONN DIN HDR 20POS PCB GOLDManufacturer: Hirose Electric Co Ltd
Categories: DIN 41612
Quality Control: Learn More

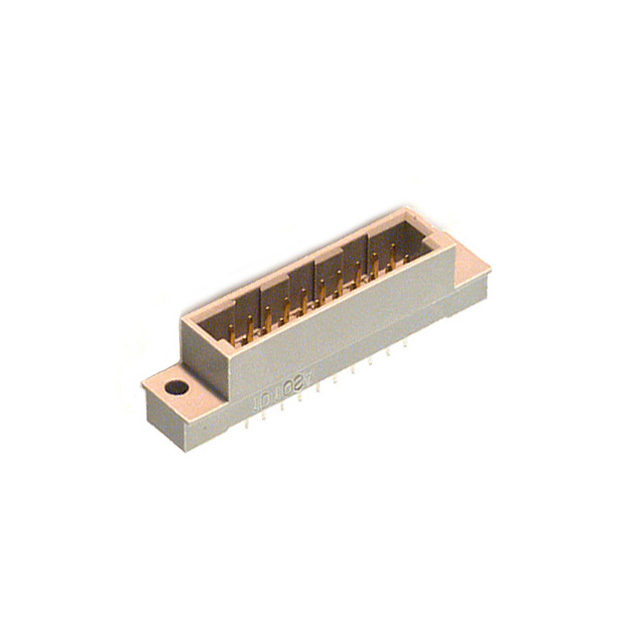

Hirose Electric Co Ltd PCN10 series DIN 41612 connector, part number PCN10-20P-2-54DSA. This 20-position male header features gold plated contacts with a thickness of 8.00µin (0.203µm) for reliable connectivity. Designed for through-hole mounting, it offers a 2.54mm pitch and a Type B style configuration. The connector is suitable for solder termination and is supplied in tray packaging. This component is commonly utilized in industrial automation, telecommunications infrastructure, and aerospace applications where robust and dependable data and power connections are critical.
Additional Information
Series: PCN10RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Pitch | 0.100"" (2.54mm) |
| Style | B |
| Number of Positions Loaded | All |
| Termination | Solder |
| Contact Finish Thickness | 8.00µin (0.203µm) |
| Number of Rows | 2 |
