HRM(V)-306S
CONN SMA JACK STR 50 OHM SOLDERManufacturer: Hirose Electric Co Ltd
Categories: Coaxial Connector (RF) Assemblies
Quality Control: Learn More

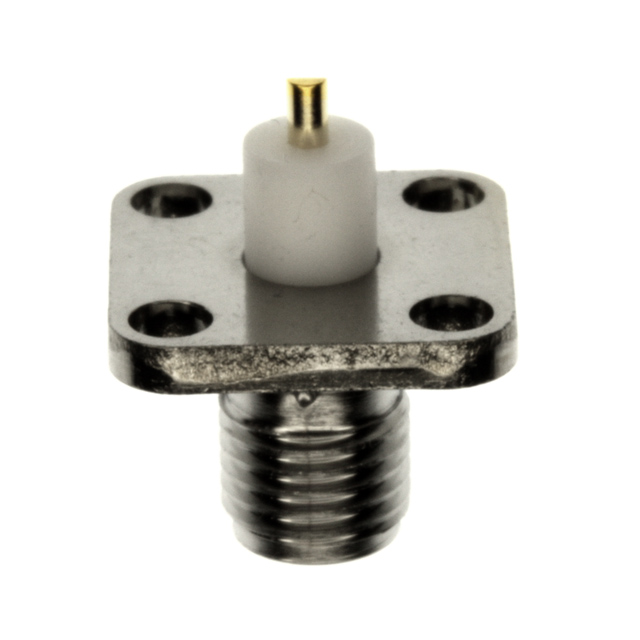

Hirose Electric Co Ltd HRM(V) series SMA connector, part number HRM-V-306S. This panel mount jack features a straight, female socket configuration with a 50 Ohm impedance and a maximum operating frequency of 18 GHz. The center contact is constructed from Beryllium Copper, with solder termination for both the contact and shield. Designed for robust RF applications, this connector offers an extended insulation feature and a threaded fastening type for secure mounting. It is typically utilized in industries such as telecommunications, aerospace, and test and measurement equipment where reliable high-frequency signal integrity is paramount. The housing is silver in color.
Additional Information
Series: HRM(V)RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:-306S&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Extended Insulation |
| Packaging | Bulk |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Impedance | 50 Ohms |
| Mounting Type | Panel Mount |
| Cable Group | - |
| Fastening Type | Threaded |
| Ingress Protection | - |
| Connector Style | SMA |
| Mounting Feature | Flange |
| Housing Color | Silver |
| Shield Termination | Solder |
| Center Contact Material | Beryllium Copper |
| Frequency - Max | 18 GHz |
| Number of Ports | 1 |
