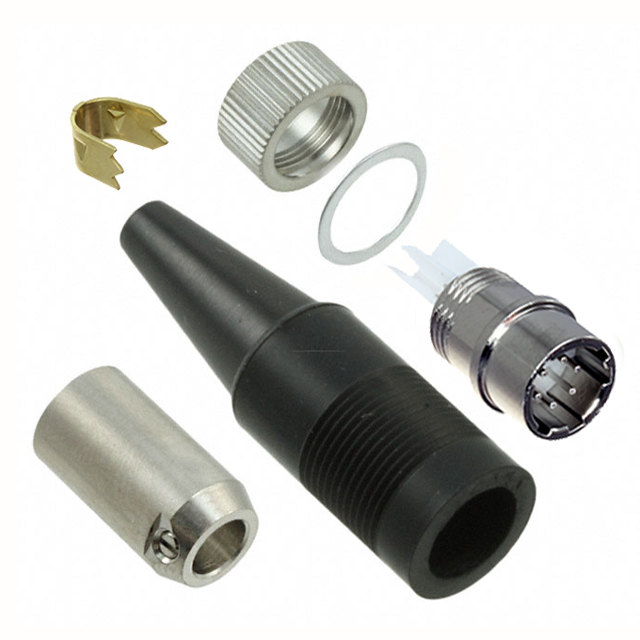

SR30-10PF-6P(71)
CONN PLUG MALE 6P SILV SLDR CUPManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
6 Position Circular Connector Plug, Male Pins Solder Cup
Additional Information
Series: SR30RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Backshell, Clamp, Coupling Nut, Strain Relief |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | Black, Silver |
| Voltage Rating | 100VAC, 140VDC |
| Current Rating (Amps) | 1A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 6 |
| Orientation | Keyed |
| Shell Size - Insert | 10 |
| Operating Temperature | -10°C ~ 60°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Primary Material | Metal |
Request a Quote
Clients Also Buy

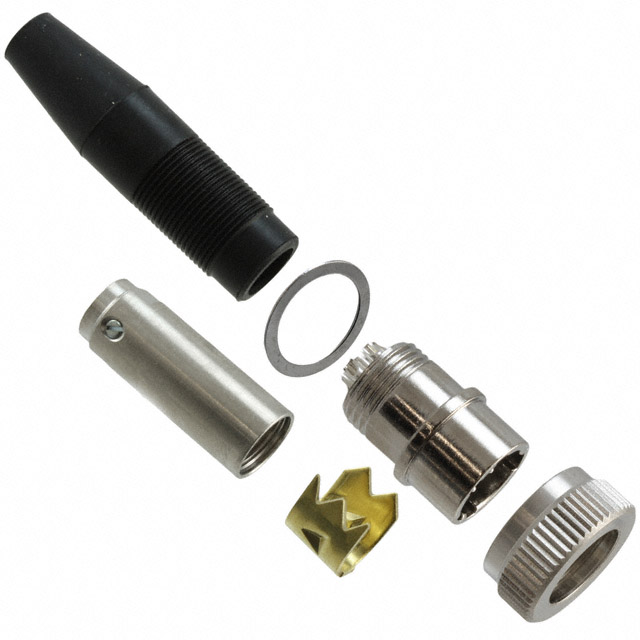

SR30-10PF-7P(71)
CONN PLUG MALE 7P SILV SLDR CUP

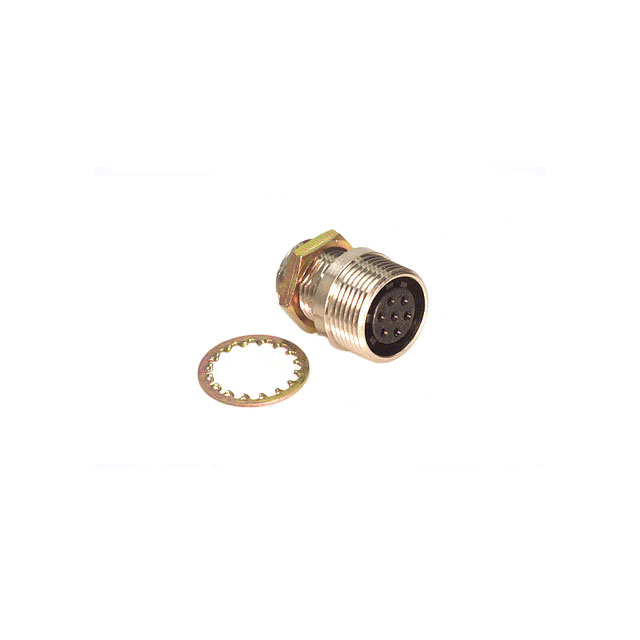

SR30-10R-6S(71)
