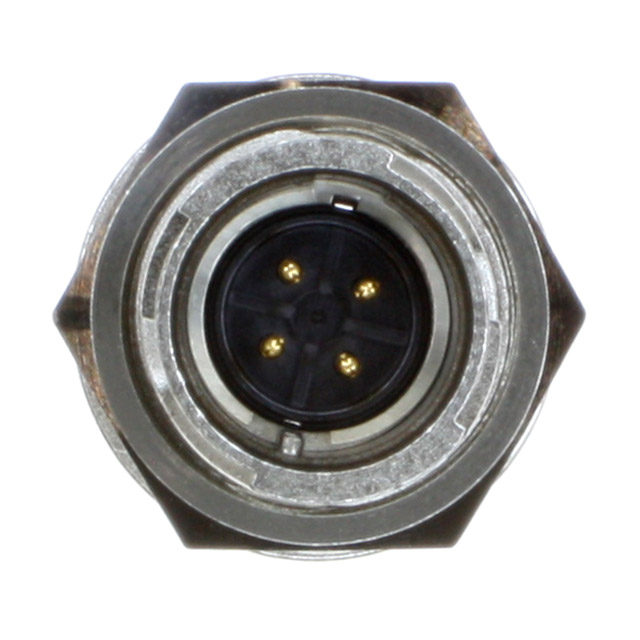

LF10WBRB-4P
CONN RCPT MALE 4P GOLD SLDR CUPManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
4 Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: LFRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | Silver |
| Voltage Rating | 125VAC/DC |
| Current Rating (Amps) | 10A |
| Mounting Type | Panel Mount |
| Shielding | - |
| Number of Positions | 4 |
| Orientation | Keyed |
| Shell Size - Insert | 10 |
| Operating Temperature | -25°C ~ 85°C |
| Fastening Type | Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Primary Material | Metal |
