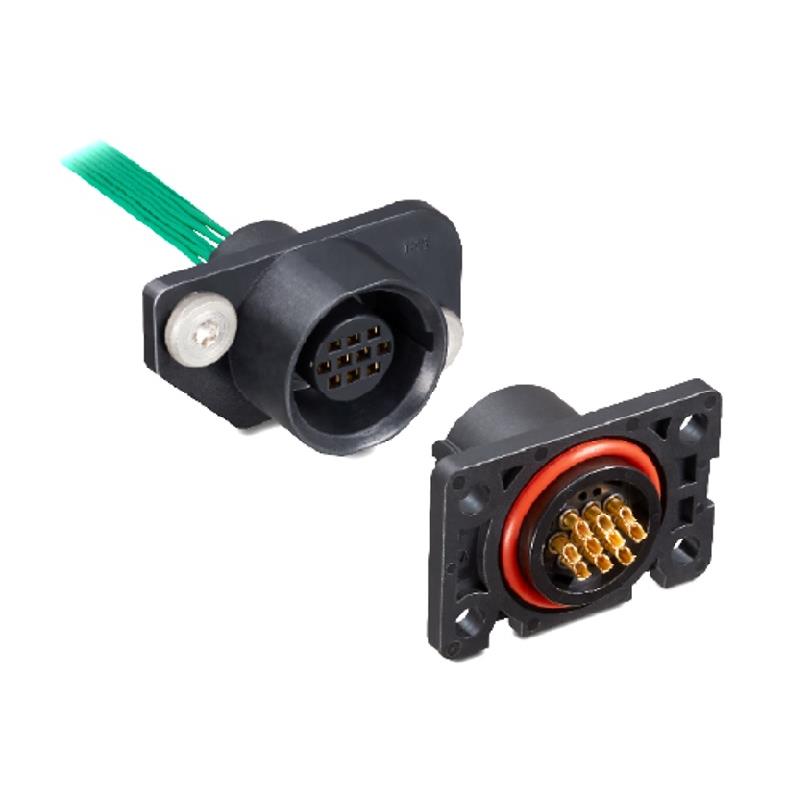

HR34P-10WP-10SC
PLUG, 10POS., 3A, IPX7, IPX8, FRManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
10 Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: HR34PRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Receptacle, Male Pins |
| Color | Black |
| Voltage Rating | 200VAC, 250VDC |
| Current Rating (Amps) | 3A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 10 |
| Orientation | Keyed |
| Shell Size - Insert | 10 |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Grade | - |
| Shell Material | Polyamide (PA), Nylon |
| Shell Finish | - |
| Primary Material | Plastic |
| Qualification | - |
