HR34B-12WRA-10P
CONN RCPT MALE 10P GOLD SLDR CUPManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
10 (Power) Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: HR34BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle, Male Pins |
| Color | Black |
| Voltage Rating | 200VAC, 250VDC |
| Current Rating (Amps) | 3A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 10 (Power) |
| Orientation | N (Normal) |
| Shell Size - Insert | 12 |
| Operating Temperature | -25°C ~ 125°C |
| Fastening Type | Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Zinc Alloy |
| Shell Finish | Chrome |
| Primary Material | Metal |
Request a Quote
Clients Also Buy
HR34B-12WLPA-10S(71)
CONN PLUG FMALE 10P SOLDER CUP

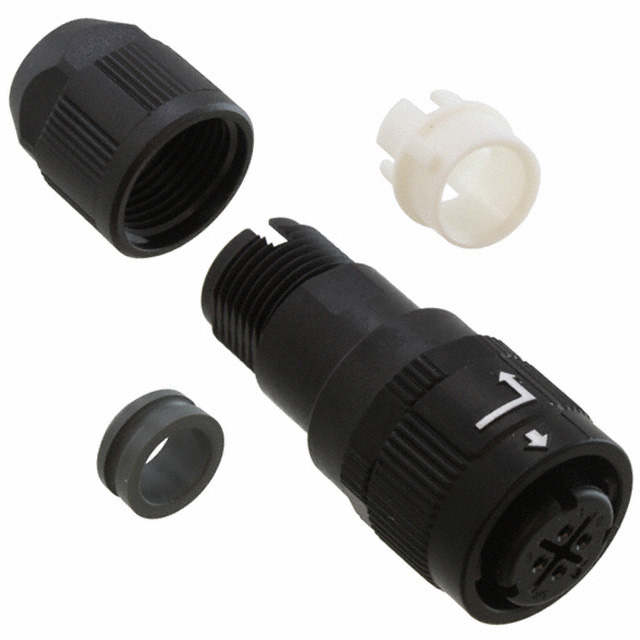

HR34B-12WPE-4S
