HR212-10R-8SDL(73)
CONN RCPT FMALE 8POS TIN SOLDERManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
8 Position Circular Connector Receptacle, Female Sockets Solder
Additional Information
Series: HR212RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: Last Time BuyPackaging: BulkDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Ground |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Color | Black, Silver |
| Voltage Rating | 100VAC, 140VDC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Shielding | Shielded |
| Number of Positions | 8 |
| Orientation | Keyed |
| Shell Size - Insert | 10 |
| Operating Temperature | -15°C ~ 60°C |
| Fastening Type | Snap-In |
| Termination | Solder |
| Ingress Protection | - |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Tin |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | Tin |
| Primary Material | Plastic |
Request a Quote
Clients Also Buy

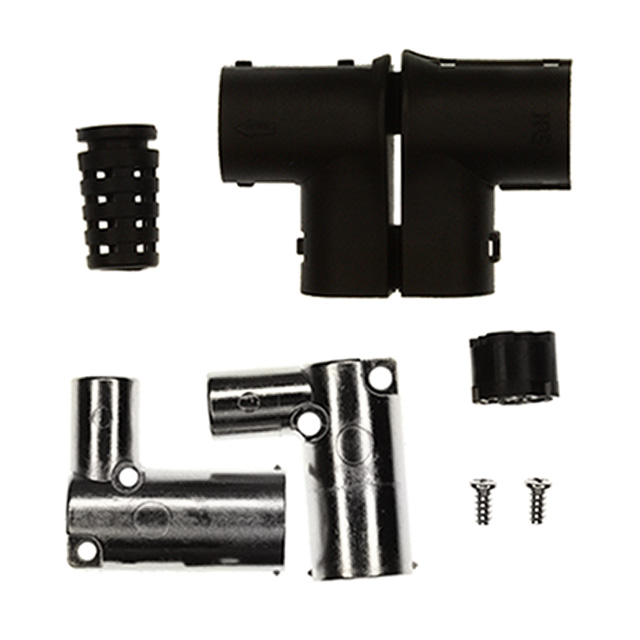

HR212-10LP-8PC(71)
CONN PLG HSG MALE 8POS INLINE RA

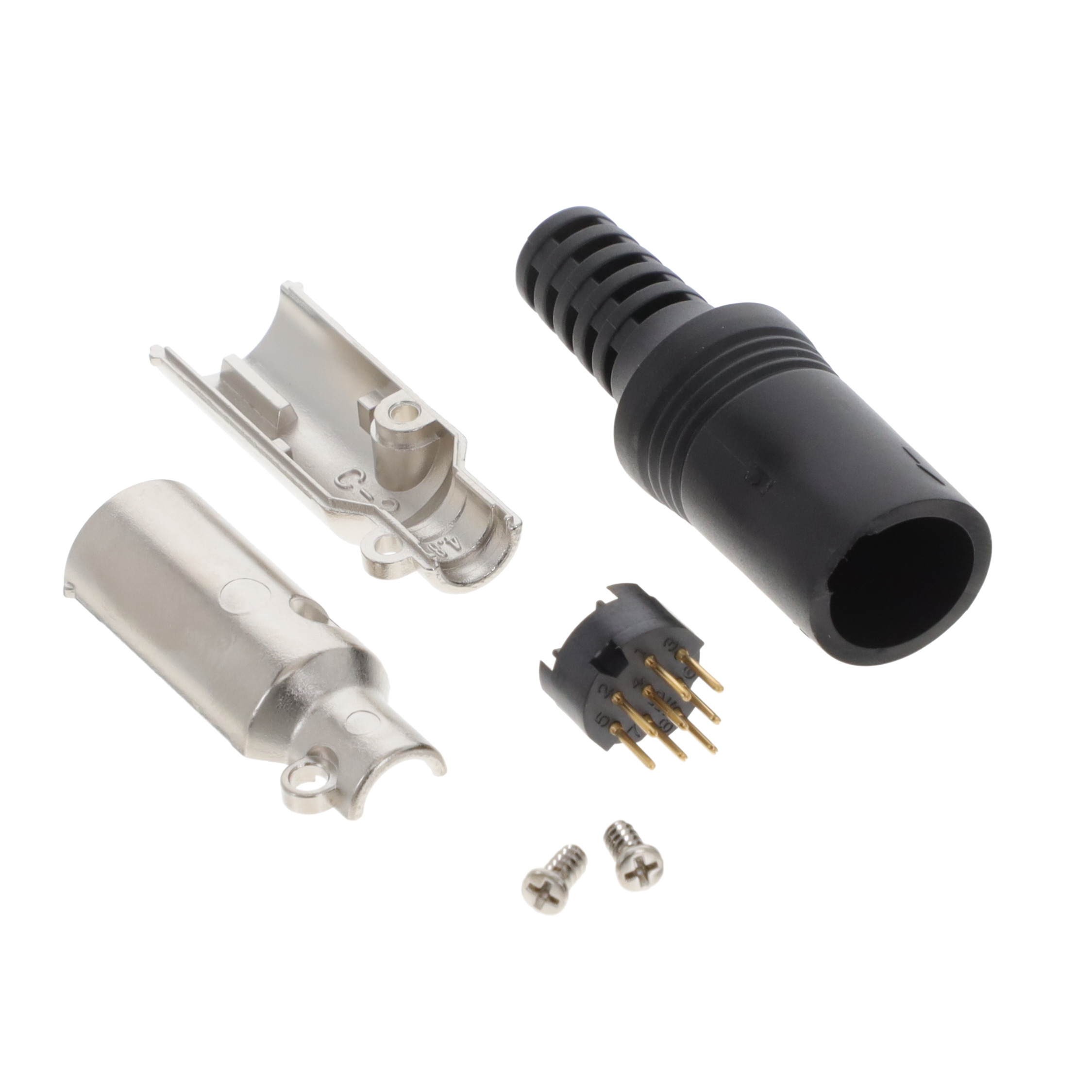

HR212-10P-8P(43)
CONN PLUG MALE 8POS SOLDER CUP

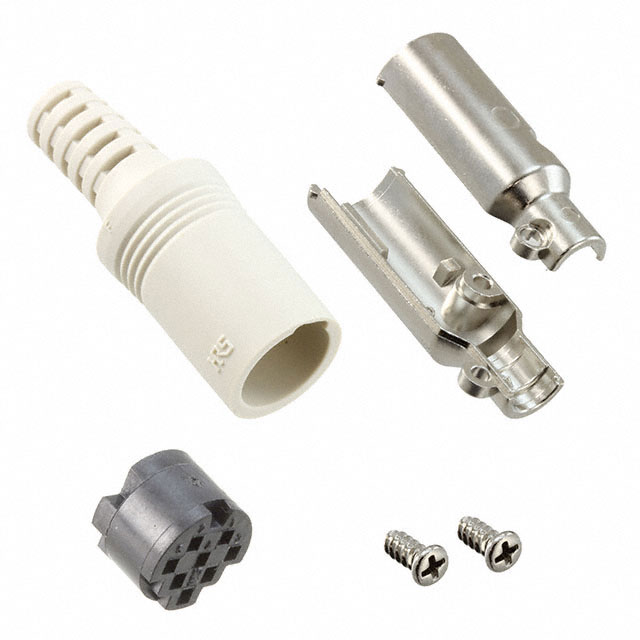

HR212-10P-8PC(72)
