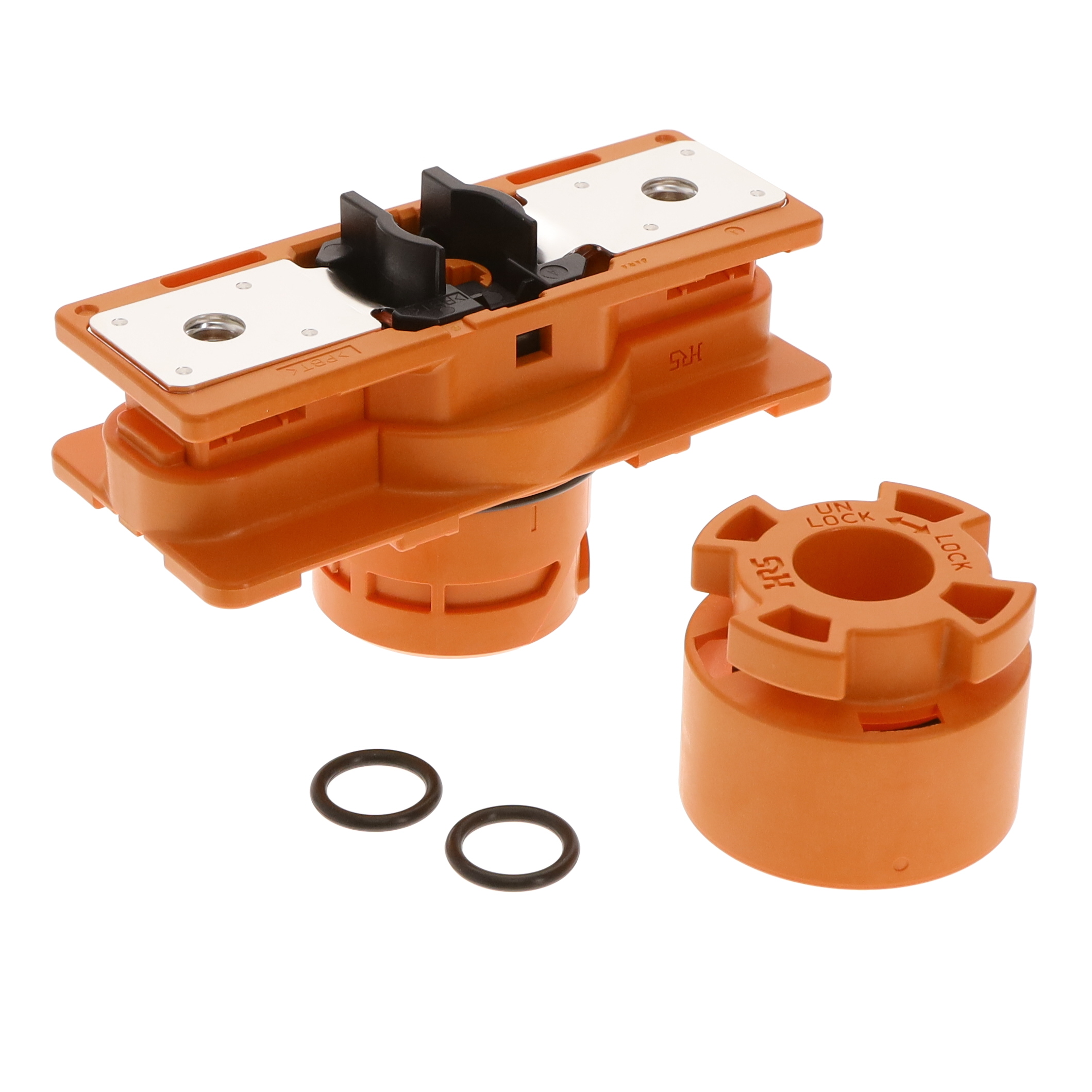

EM30MSD(04)
CONN CIRC 2P SILVER CRIMP SCREWManufacturer: Hirose Electric Co Ltd
Categories: Circular Connector Assemblies
Quality Control: Learn More
2 (1 + 1 Power) Position Circular Connector Plug and Receptacle Crimp, Screw
Additional Information
Series: EM30MSDRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Interlocking Switch |
| Packaging | Tray |
| Connector Type | Plug and Receptacle |
| Color | Orange |
| Voltage Rating | 250VAC/DC, 1500VAC/DC |
| Current Rating (Amps) | 1A, 200A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 2 (1 + 1 Power) |
| Orientation | Keyed |
| Shell Size - Insert | 30 |
| Operating Temperature | -40°C ~ 105°C |
| Fastening Type | Bayonet Lock |
| Termination | Crimp, Screw |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver, Tin |
| Shell Material | Polybutylene Terephthalate (PBT) |
| Shell Finish | - |
| Primary Material | Plastic |
