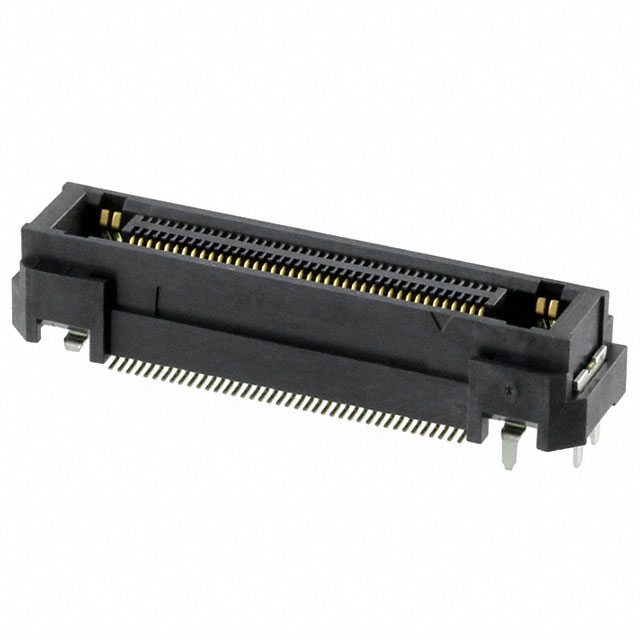

FX23-80S-0.5SH(20)
CONN RCPT 80POS R/A SMD GOLDManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
84 (80 + 4 Power) Position Connector Receptacle, Center Strip Contacts Surface Mount, Right Angle Gold
Additional Information
Series: FunctionMax™ FX23RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 84 (80 + 4 Power) |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.287"" (7.30mm) |
| Contact Finish Thickness | - |
| Mated Stacking Heights | - |
| Number of Rows | 2 |
