FX23-40P-0.5SV15(20)
CONN HDR 40POS SMD GOLDManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
40 Position Connector Header, Center Strip Contacts Surface Mount Gold
Additional Information
Series: FunctionMax™ FX23RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.504"" (12.80mm) |
| Contact Finish Thickness | - |
| Mated Stacking Heights | 25mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

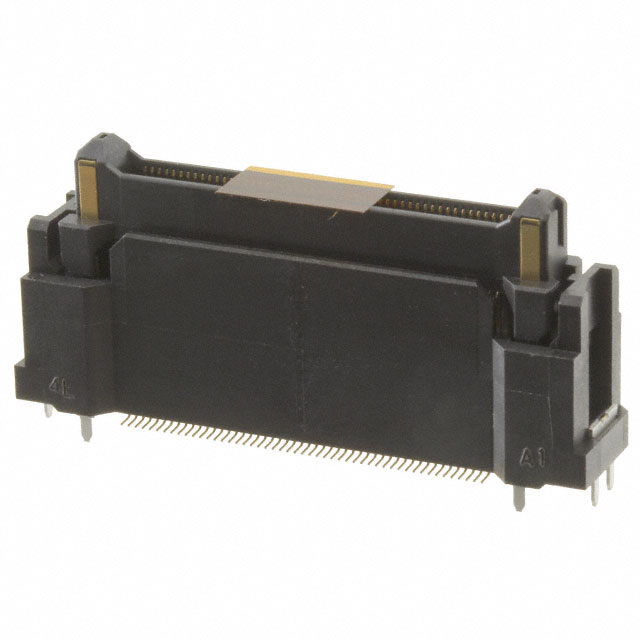

FX23-100P-0.5SV20(20)
CONN HDR

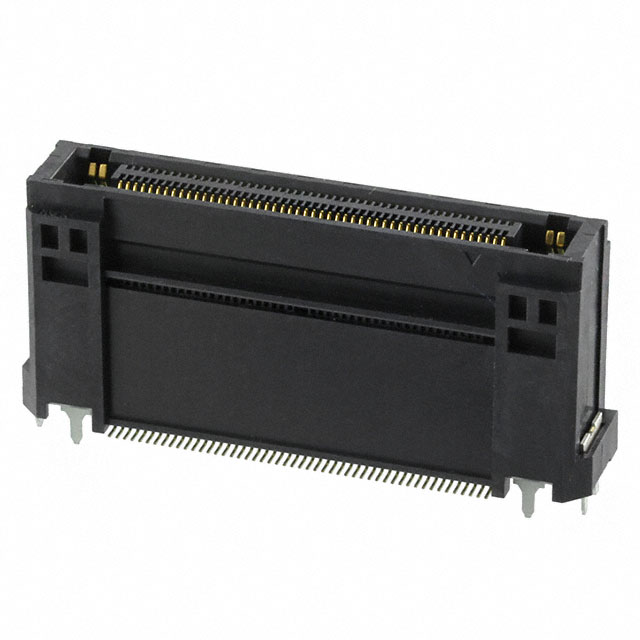

FX23-100S-0.5SV10
CONN RCPT 100POS SMD GOLD

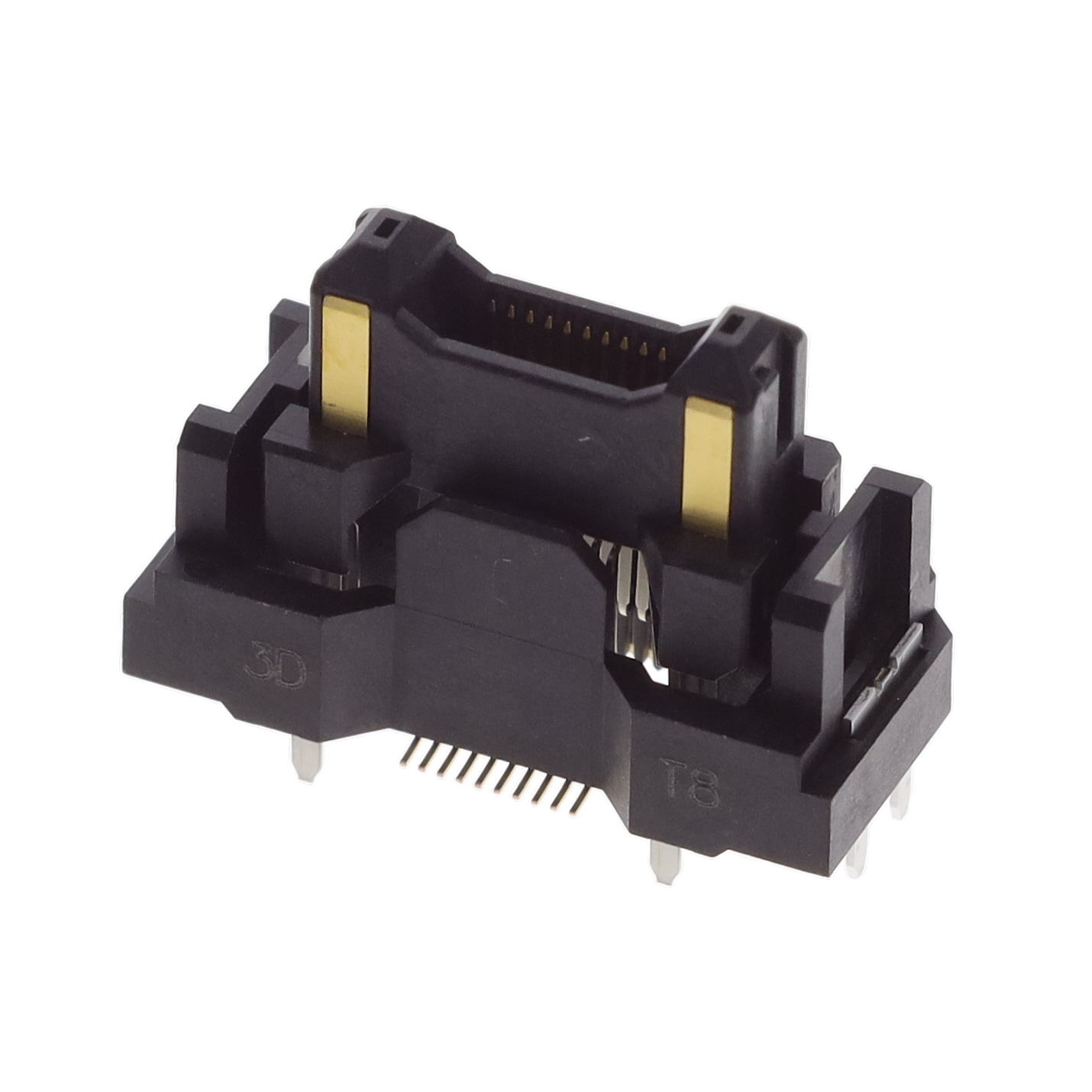

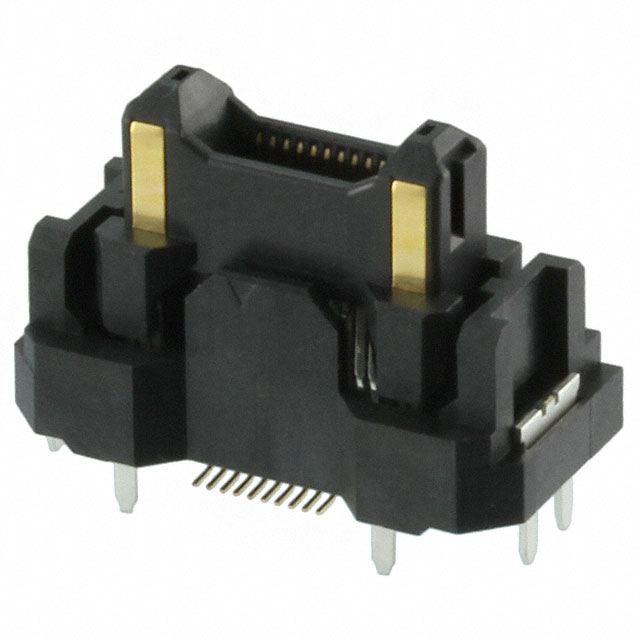

FX23-20P-0.5SV15
