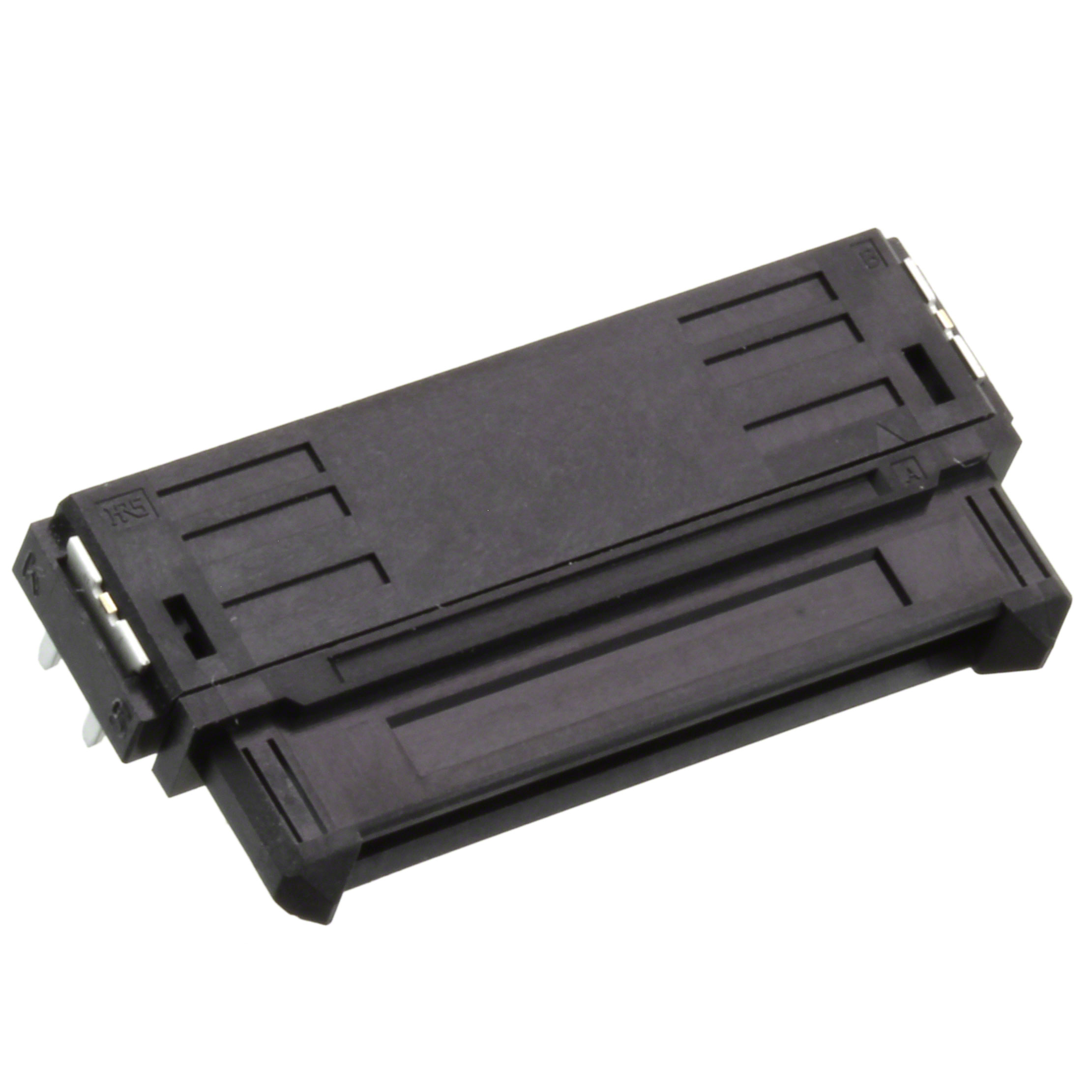

FX22-40P-0.5SH
CONN PLUG 40POS R/A SMDManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
40 Position Connector Plug, Non-Gendered Surface Mount, Right Angle
Additional Information
Series: FunctionMax™ FX22RoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tape & Reel (TR) |
| Connector Type | Plug, Non-Gendered |
| Contact Finish | - |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 40 |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.165"" (4.20mm) |
| Contact Finish Thickness | - |
| Mated Stacking Heights | - |
| Number of Rows | 1 |
Request a Quote
Clients Also Buy

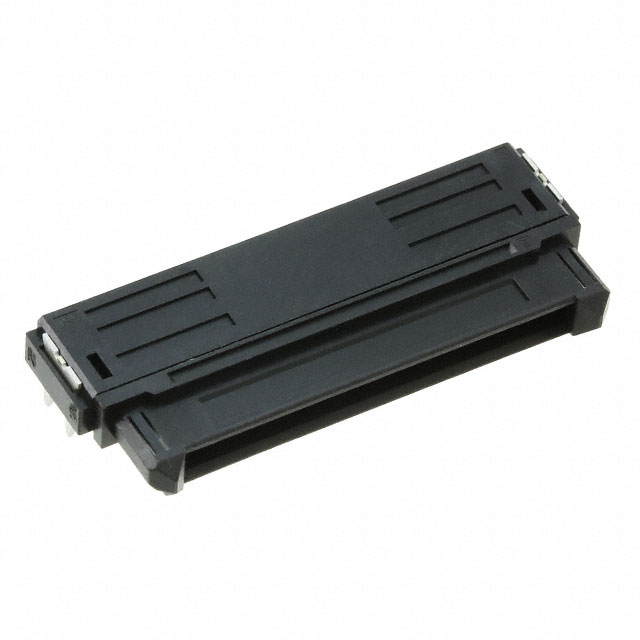

FX22-50P-0.5SH
CONN PLUG 50POS R/A SMD

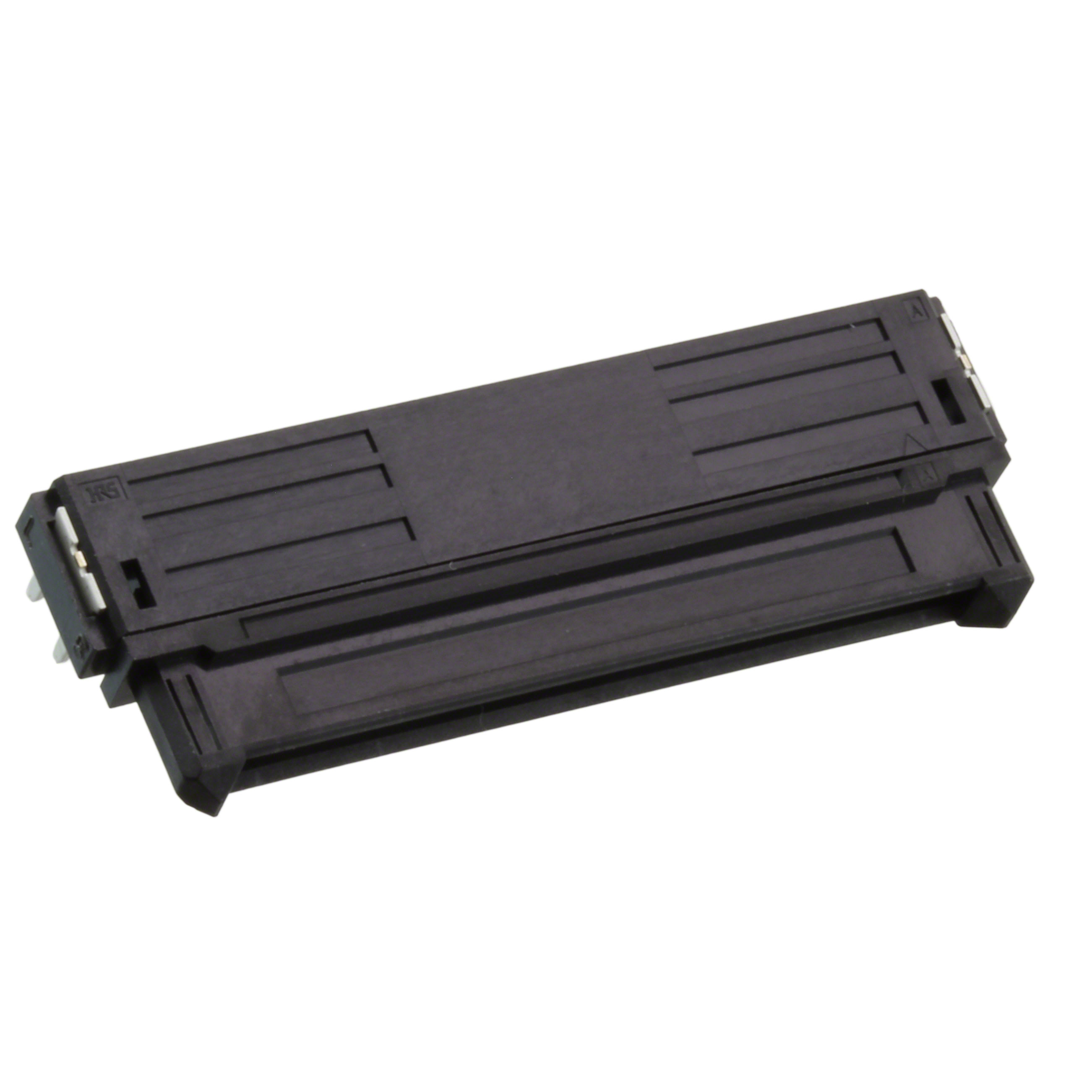

FX22-60P-0.5SH
CONN PLUG 60POS R/A SMD

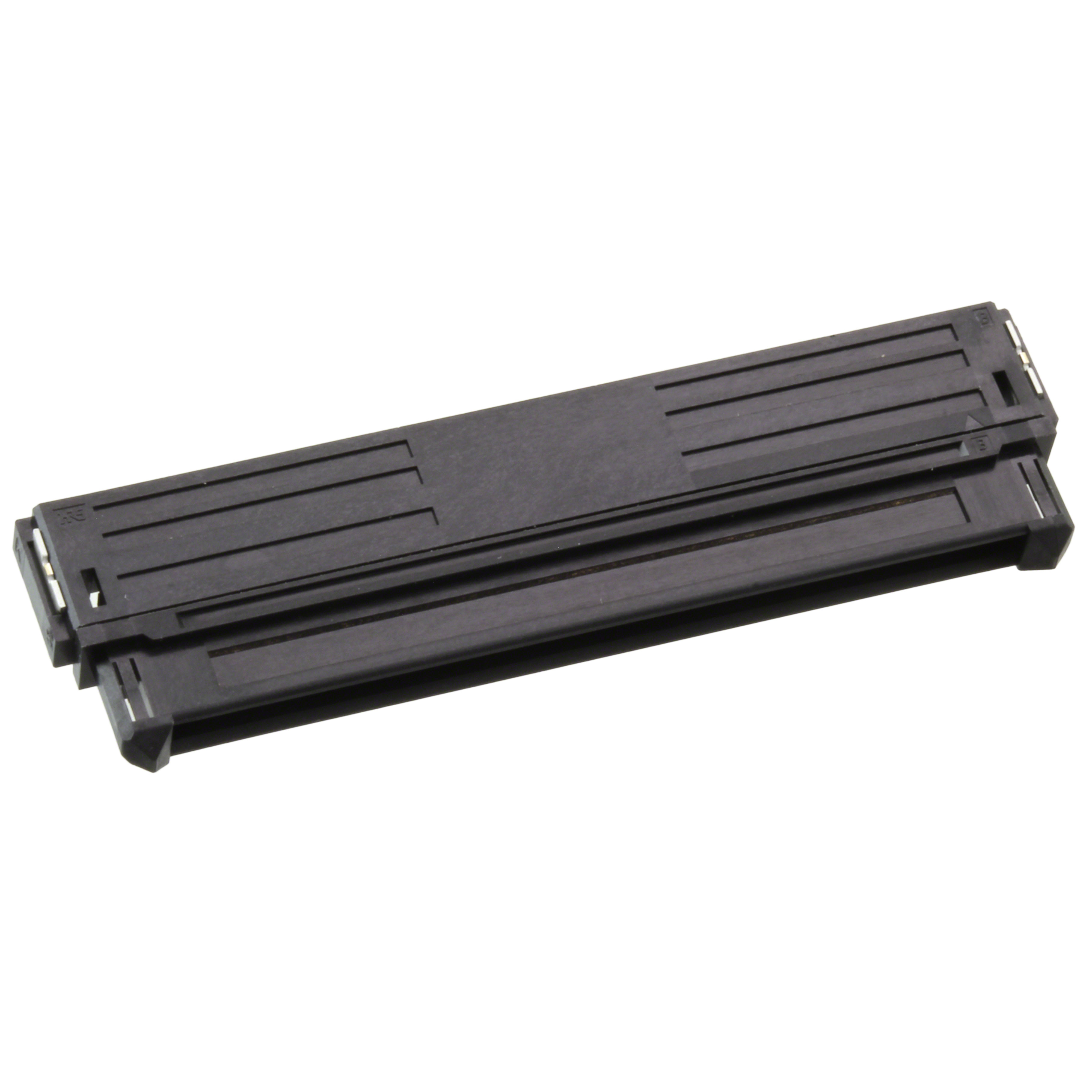

FX22-80P-0.5SH
