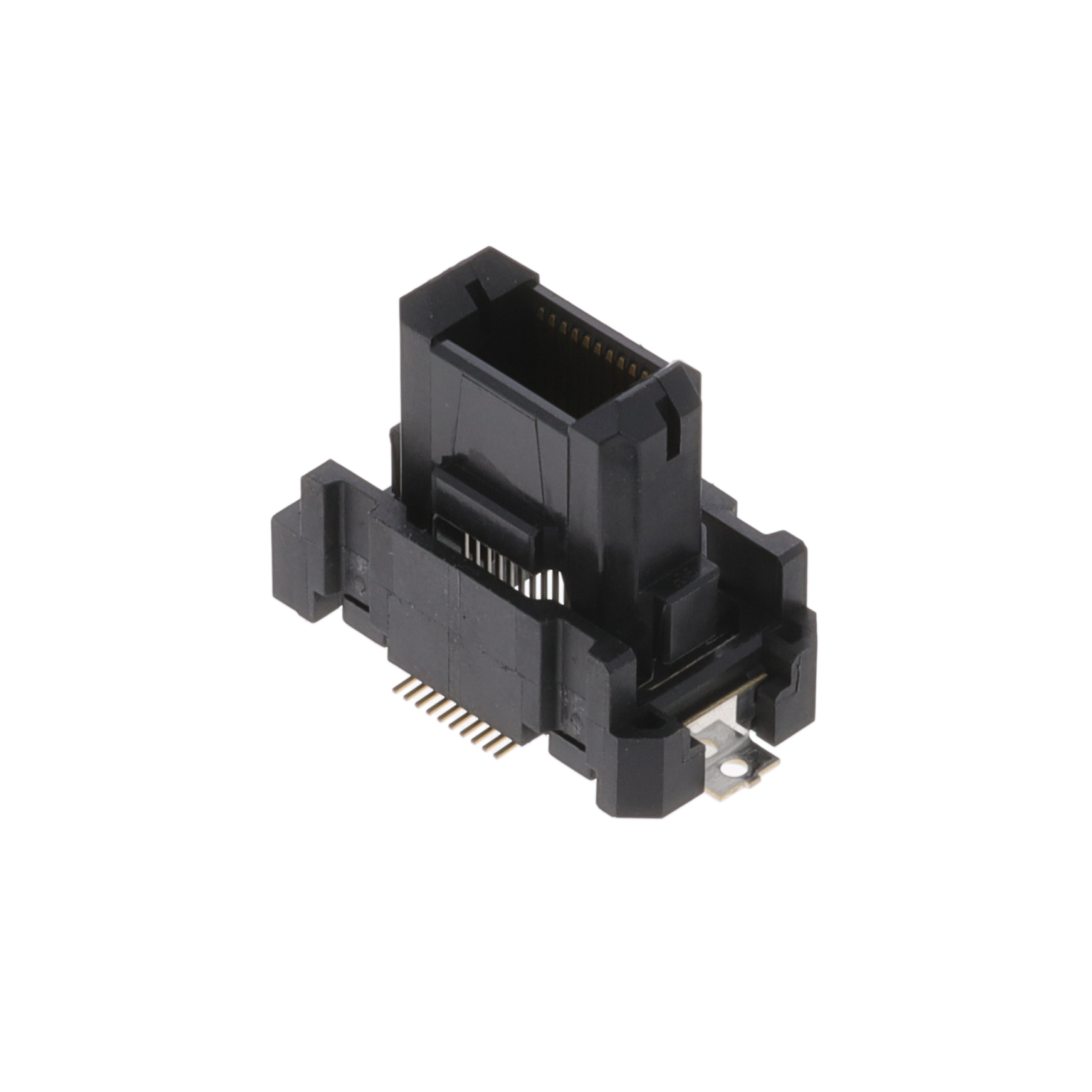

FX20-20P-0.5SV15(20)
CONN HDRManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Additional Information
Series: FunctionMax™ FX20RoHS Status: Request inventory verificationManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Pitch | 0.020"" (0.50mm) |
| Height Above Board | 0.520"" (13.20mm) |
| Contact Finish Thickness | 3.94µin (0.100µm) |
| Mated Stacking Heights | 15mm, 25mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy
FX20-140P-0.5SV15
CONN HDR 140POS SMD GOLD

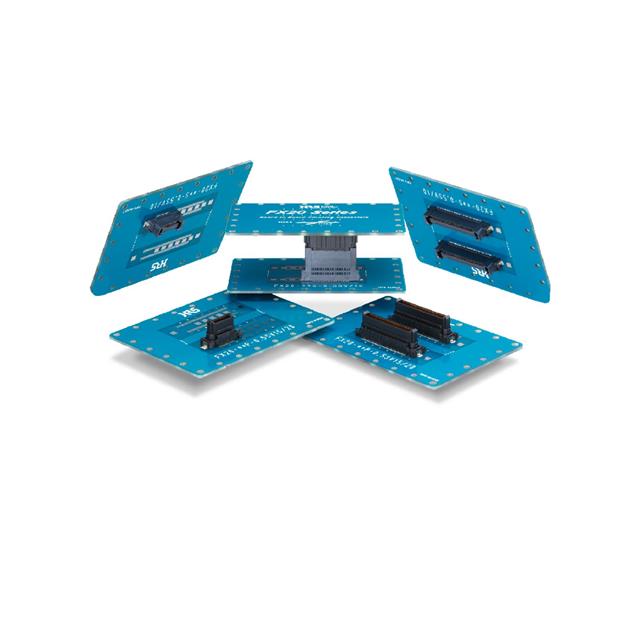

FX20-140P-0.5SV15(20)
CONN HDR 0.5MM VERT 140POS

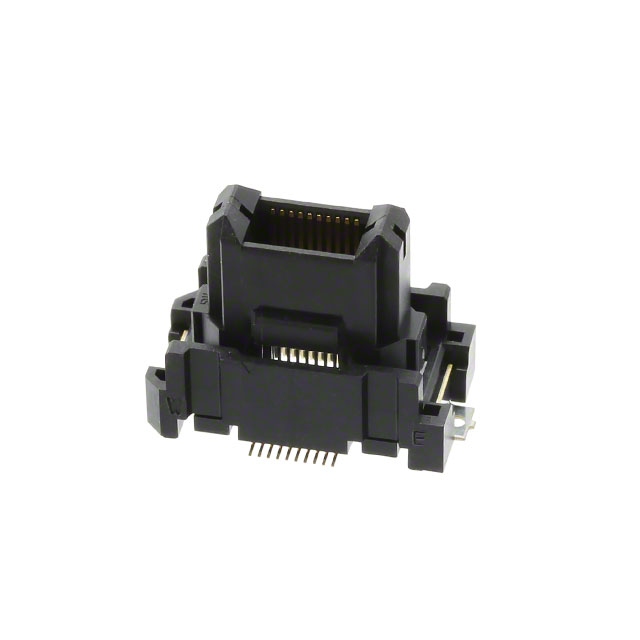

FX20-20P-0.5SV15
