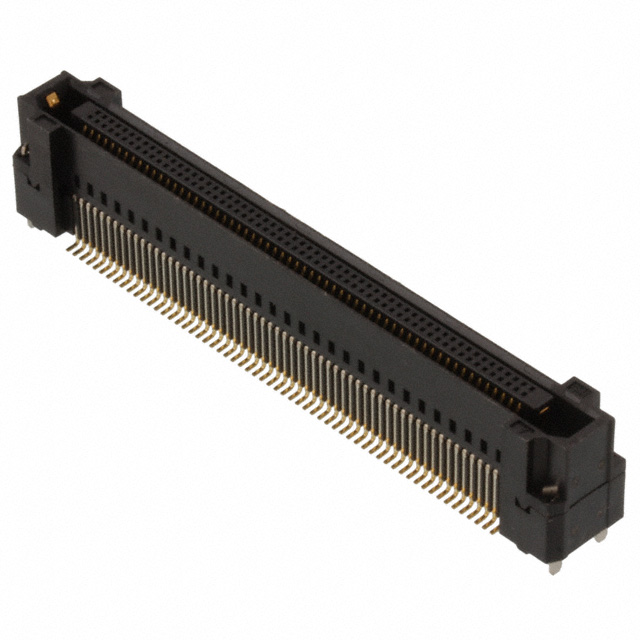

FX18-120S-0.8SV15
CONN RCPT 120POS SMD GOLDManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Additional Information
Series: FunctionMax™ FX18RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Tray |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Pitch | 0.031"" (0.80mm) |
| Height Above Board | 0.450"" (11.43mm) |
| Contact Finish Thickness | 4.00µin (0.100µm) |
| Mated Stacking Heights | 15mm, 25mm |
| Number of Rows | 2 |
Request a Quote
Clients Also Buy

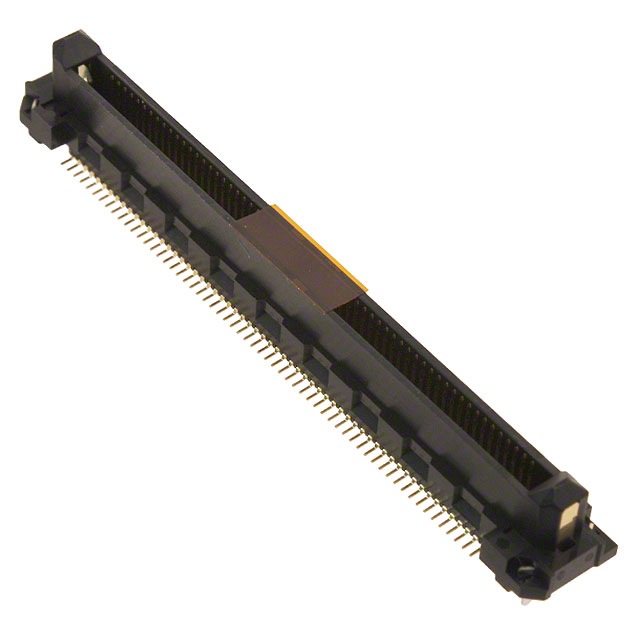

FX18-120P-0.8SV
CONN HDR 120POS SMD GOLD

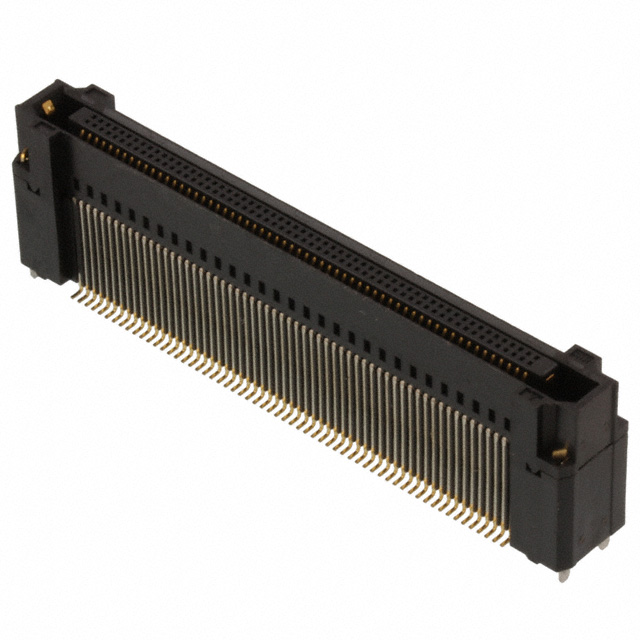

FX18-120S-0.8SV20
