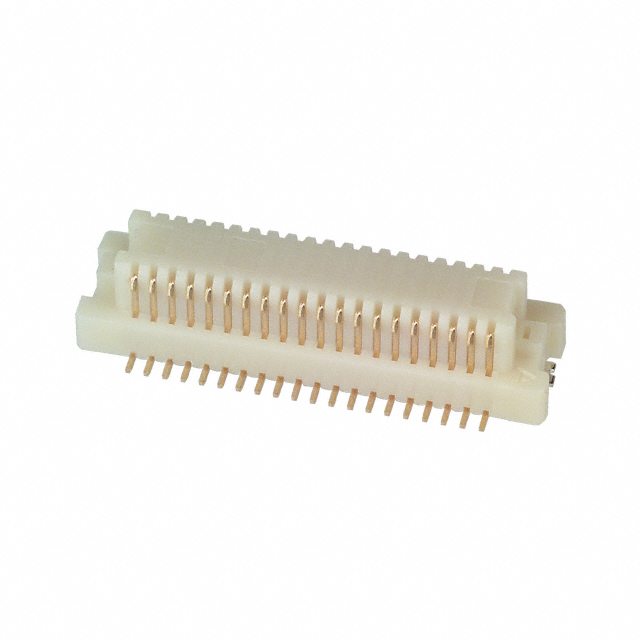

DF15(0.8)-40DS-0.65V(56)
CONN RCPT 40POS SMD GOLDManufacturer: Hirose Electric Co Ltd
Categories: Arrays, Edge Type, Mezzanine (Board to Board)
Quality Control: Learn More
40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Additional Information
Series: DF15RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:-40DS-0.65V(56)&lbl=1&lbc=000000&q3=1)
Technical Details:
| Features | Board Guide, Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Pitch | 0.026"" (0.65mm) |
| Height Above Board | 0.118"" (3.00mm) |
| Contact Finish Thickness | 4.00µin (0.100µm) |
| Mated Stacking Heights | 4mm, 5mm, 7mm |
| Number of Rows | 2 |
Request a Quote
