HT-T169NB-5538
3.5(L) X 2.7(W) X 1.8(H)MMManufacturer: Harvatek Corporation
Categories: LED Indication - Discrete
Quality Control: Learn More
Harvatek Corporation HT-T169 series blue LED, part number HT-T169NB-5538, offers a 470nm dominant wavelength with a peak wavelength of 468nm. This discrete LED component features a 3.3V forward voltage and a typical test current of 20mA, delivering 100mcd luminous intensity. The component is housed in a 2-PLCC package, measuring 3.20mm L x 2.70mm W x 1.90mm H. It utilizes a diffused, colorless lens with a round flat top style, designed for surface mounting. This component finds application in various industrial sectors requiring reliable visual indication, including consumer electronics and industrial automation. The packaging format is Cut Tape (CT).
Additional Information
Series: HT-T169RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 2-PLCC |
| Color | Blue |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.3V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.90mm |
| Wavelength - Peak | 468nm |
| Wavelength - Dominant | 470nm |
| Supplier Device Package | 2-PLCC |
| Lens Transparency | Diffused |
| Grade | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Qualification | - |
Request a Quote
Clients Also Buy
B3C93RBG-02DZH4001U1930
LED RGB DIFFUSED SMD

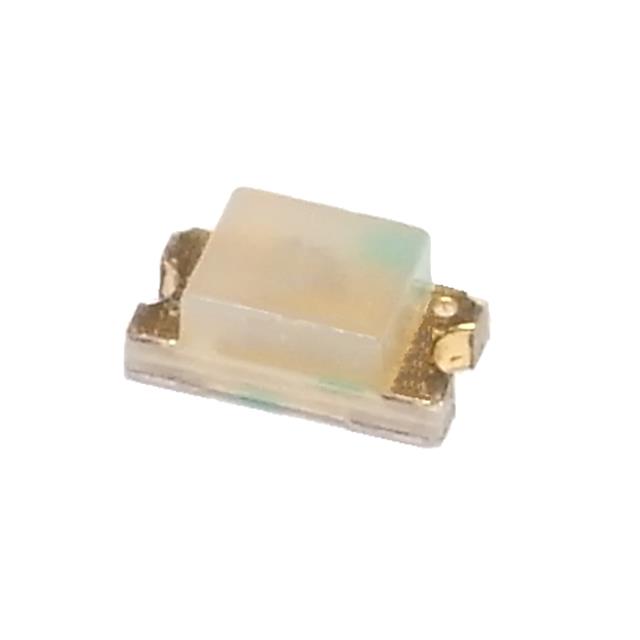

HT-191NB-5312
