20312000103
CURRENT SENSORManufacturer: HARTING
Categories: Current Sensors
Quality Control: Learn More

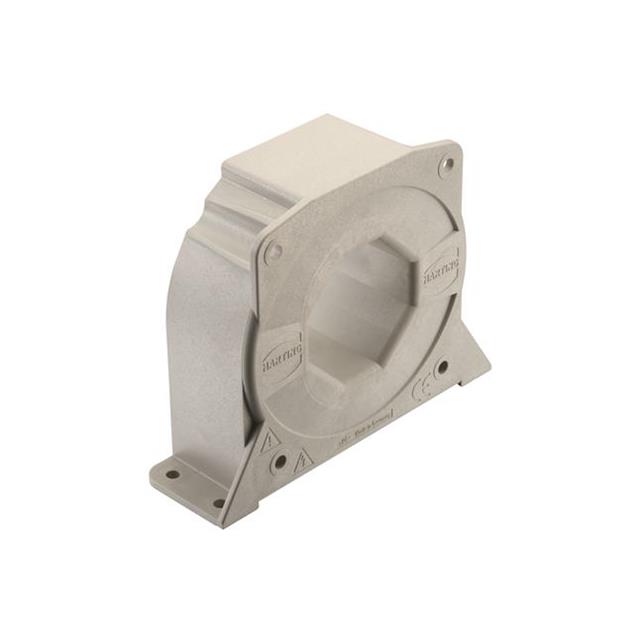

HARTING's 20312000103 is a closed-loop Hall Effect current sensor designed for high-current applications. This module features a single pass-through design, enabling it to accurately measure AC and DC currents up to 2000A. With a tight ±0.3% accuracy and ±0.1% linearity, it ensures precise current monitoring across a wide frequency range from 0Hz to 100kHz. The sensor operates on a supply voltage of 15V to 24V, drawing a maximum of 520mA. Its robust construction allows for operation in temperatures ranging from -20°C to 85°C, making it suitable for demanding environments. The panel mount design facilitates integration into industrial control systems, power distribution units, and renewable energy infrastructure. This component offers a rapid 1µs response time for dynamic current analysis.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | - |
| Sensitivity | - |
| Mounting Type | Panel Mount |
| Output | - |
| Frequency | 0Hz ~ 100kHz |
| Accuracy | ±0.3% |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply | 15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 520mA |
| Current - Sensing | 2000A |
| Number of Channels | 1 |
