20311009106
CURRENT SENSORManufacturer: HARTING
Categories: Current Sensors
Quality Control: Learn More

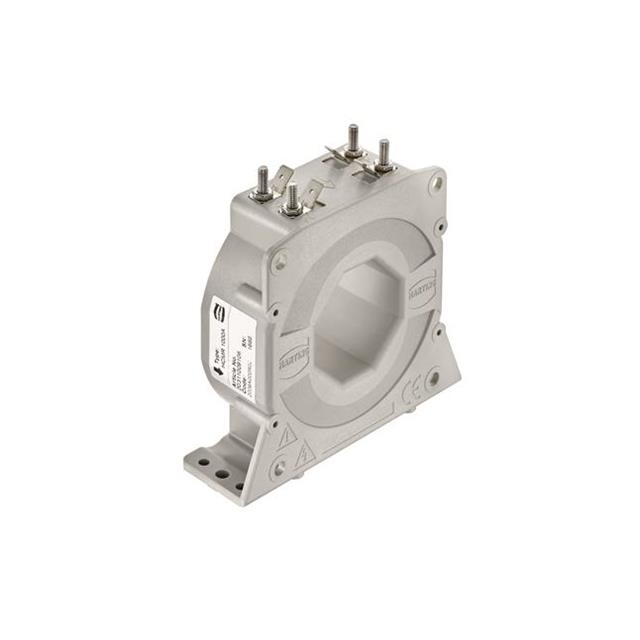

HARTING's 20311009106 is a closed-loop Hall effect current sensor designed for precise AC/DC current measurement up to 1000A. This module features a single pass-through design, simplifying installation in high-current applications. It offers excellent linearity of ±0.1% and an accuracy of ±0.4%, ensuring reliable data acquisition across a wide frequency range from 0Hz to 100kHz. The sensor operates with a supply voltage of 15V to 24V and a maximum supply current of 228mA, with a rapid 1µs response time. Its robust construction and panel mount capability make it suitable for demanding industrial environments, including power systems, electric vehicle charging, and renewable energy infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | - |
| Sensitivity | - |
| Mounting Type | Panel Mount |
| Output | - |
| Frequency | 0Hz ~ 100kHz |
| Accuracy | ±0.4% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 228mA |
| Current - Sensing | 1000A |
| Number of Channels | 1 |
