20311000101
SENSOR CURRENT HALL 1000A ACManufacturer: HARTING
Categories: Current Sensors
Quality Control: Learn More

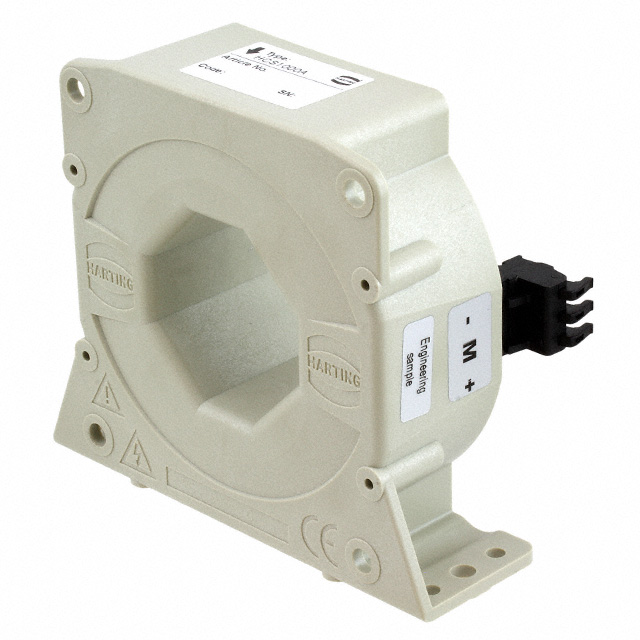

HARTING Current Sensor, Part Number 20311000101, offers a 1000A AC sensing capability within a closed-loop Hall effect module. This single-channel, bidirectional device features a pass-through design for straightforward integration. With an accuracy of ±0.4% and linearity of ±0.1%, it provides precise measurements for AC and DC currents up to 100kHz. The sensor operates from a supply voltage of 15V to 24V, drawing a maximum of 28mA. Its output is ratiometric and voltage-based, with a rapid 1µs response time. Designed for panel mounting, this component is suitable for demanding applications across industrial automation, power conversion, and electric vehicle charging systems. It is supplied in bulk packaging and operates within a temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Panel Mount |
| Output | Ratiometric, Voltage |
| Frequency | 100kHz |
| Accuracy | ±0.4% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 28mA |
| Current - Sensing | 1000A |
| Supplier Device Package | - |
| Number of Channels | 1 |
