20310509101
SENSOR CURRENT HALL 500A ACManufacturer: HARTING
Categories: Current Sensors
Quality Control: Learn More

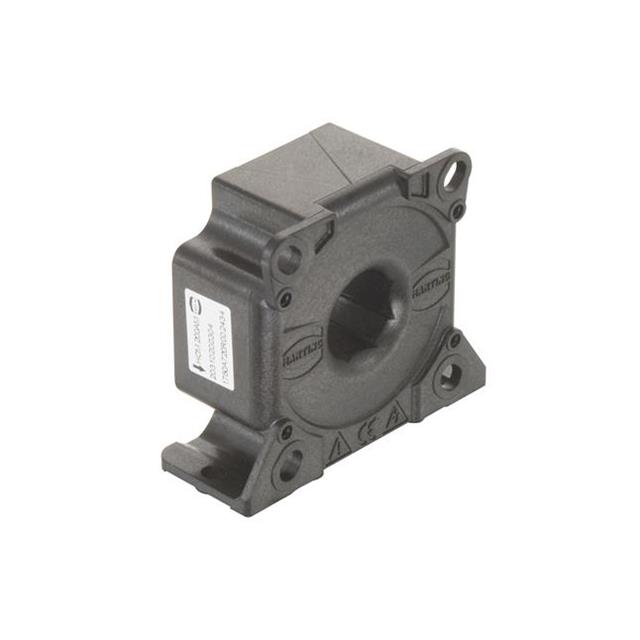

HARTING's 20310509101 is a closed-loop Hall Effect current sensor designed for precise bidirectional AC/DC current measurement up to 500A. This module features a single-pass-through primary conductor and a ratiometric voltage output, offering ±1% accuracy and ±0.1% linearity. Operating from a 15V to 24V supply with a maximum consumption of 35mA, the device boasts a rapid 1µs response time. Its chassis mount design and module package facilitate integration into demanding applications. This component is widely utilized in industrial automation, power systems, electric vehicle charging, and renewable energy infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | Ratiometric, Voltage |
| Frequency | - |
| Accuracy | ±1% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 15V ~ 24V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 35mA |
| Current - Sensing | 500A |
| Supplier Device Package | - |
| Number of Channels | 1 |
