20310200102
SENSOR CURRENT HALL 200A ACManufacturer: HARTING
Categories: Current Sensors
Quality Control: Learn More

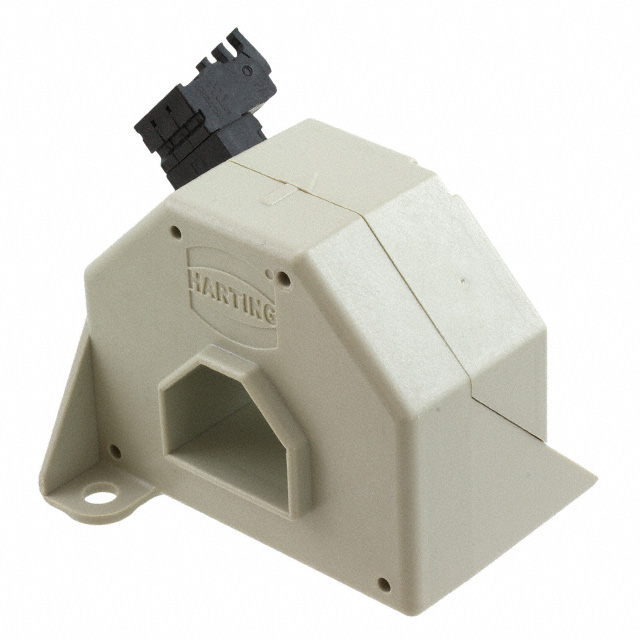

HARTING Current Sensor, Part Number 20310200102, is a closed-loop Hall effect sensor designed for AC and DC current measurement up to 200A. This single-channel module features a bidirectional, single pass-through design for convenient integration. Key specifications include a high accuracy of ±0.8% and linearity of ±0.1%, with a broad operating temperature range of -40°C to 85°C. The sensor operates with a supply voltage of 12V to 15V and a maximum supply current of 20mA. Its ratiometric voltage output and 1µs response time make it suitable for demanding applications. This component finds utility in industrial automation, power conversion, and electric vehicle systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Panel Mount |
| Output | Ratiometric, Voltage |
| Frequency | 100kHz |
| Accuracy | ±0.8% |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 12V ~ 15V |
| Response Time | 1µs |
| Sensor Type | Hall Effect, Closed Loop |
| Linearity | ±0.1% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 20mA |
| Current - Sensing | 200A |
| Supplier Device Package | - |
| Number of Channels | 1 |
