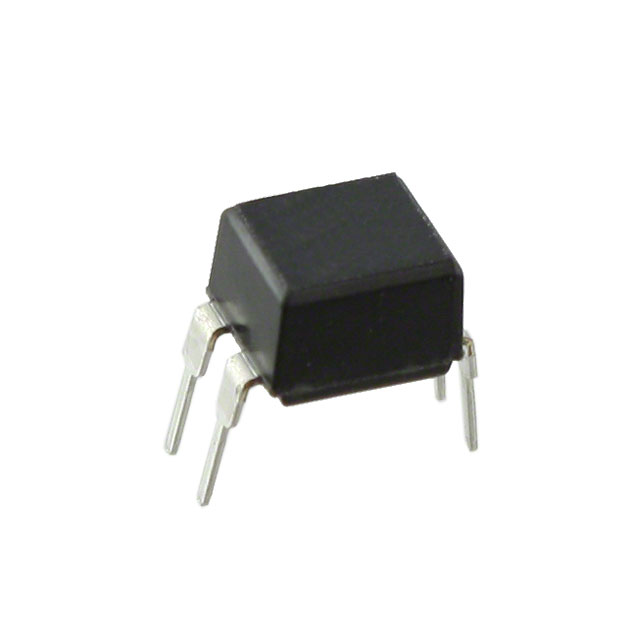

IRFD110
1A, 100V, 0.600 OHM, N-CHANNELManufacturer: Harris Corporation
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 1A (Ta) 1.3W (Ta) Through Hole 4-DIP, Hexdip, HVMDIP
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Rds On (Max) @ Id, Vgs | 540mOhm @ 600mA, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 1.3W (Ta) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 4-DIP, Hexdip, HVMDIP |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 8.3 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 180 pF @ 25 V |
Request a Quote
