MWS5101AEL2
IC SRAM 1KBIT PARALLEL 22DIPManufacturer: Harris Corporation
Categories: Memory
Quality Control: Learn More

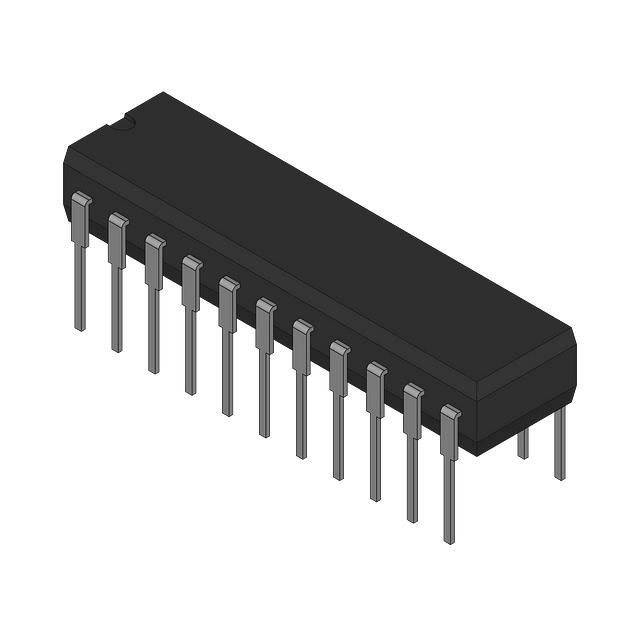

Harris Corporation MWS5101AEL2 is a 1Kbit asynchronous SRAM memory integrated circuit. This component offers a parallel interface with a memory organization of 256 words by 4 bits, providing a 250 ns access time. The MWS5101AEL2 operates within a voltage supply range of 4.5V to 5.5V and features a write cycle time of 300 ns. Packaged in a 22-pin Dual In-line Package (PDIP), it is designed for through-hole mounting. This device is suitable for applications requiring fast, volatile memory storage, commonly found in industrial control systems and legacy equipment designs. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 22-DIP (0.400"", 10.16mm) |
| Mounting Type | Through Hole |
| Memory Size | 1Kbit |
| Memory Type | Volatile |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Technology | SRAM - Asynchronous |
| Memory Format | SRAM |
| Supplier Device Package | 22-PDIP |
| Write Cycle Time - Word, Page | 300ns |
| Memory Interface | Parallel |
| Access Time | 250 ns |
| Memory Organization | 256 x 4 |
| Programmable | Not Verified |
