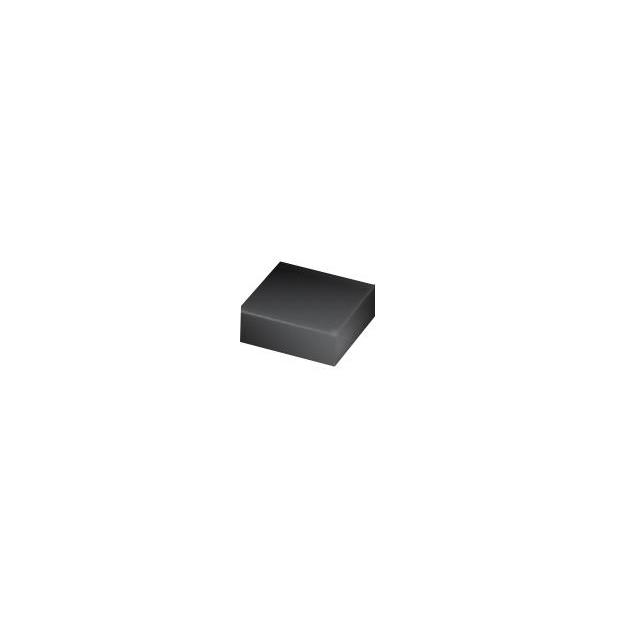

SSFB2310L
MOSFET, N-CH, SINGLE, 9.9A, 20V,Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 20 V 9.9A (Ta) 2.01W (Ta) Surface Mount 6-DFN (2x2)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 6-UDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 9.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 2.01W (Ta) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | 6-DFN (2x2) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1480 pF @ 10 V |
Request a Quote
