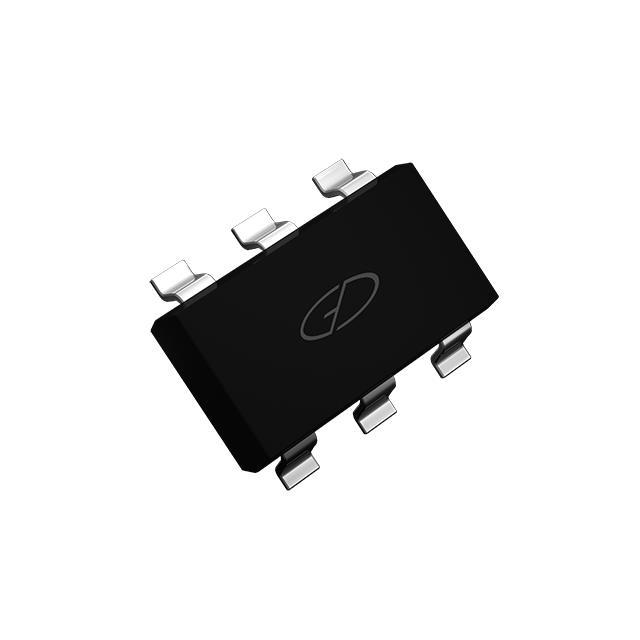

SSF2307
MOSFET, P-CH, SINGLE, -6.50A, -2Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
P-Channel 20 V 6.5A (Tc) 1.56W (Tc) Surface Mount SOT-23-6L
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Tc) |
| Rds On (Max) @ Id, Vgs | 23mOhm @ 5A, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 1.56W (Tc) |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-23-6L |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V |
| Vgs (Max) | ±10V |
| Drain to Source Voltage (Vdss) | 20 V |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2430 pF @ 15 V |
| Qualification | - |
