GSGP9R115
MOSFET, N-CH, SINGLE, 87.00A, 15Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

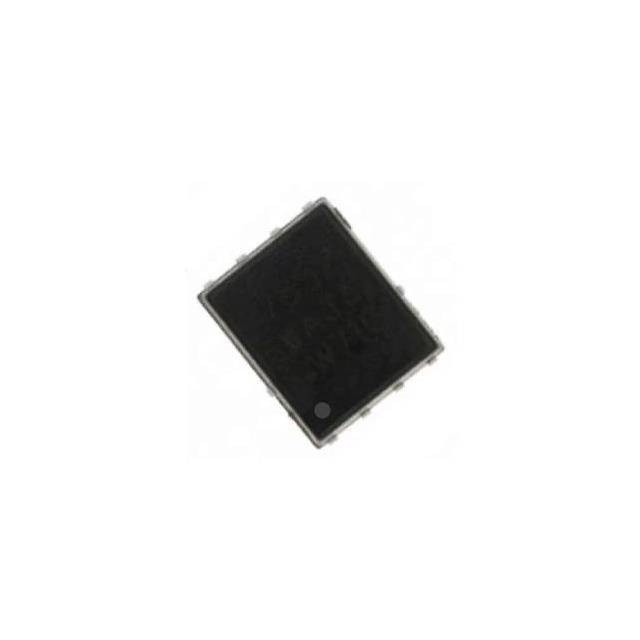

N-Channel 150 V 87A (Tc) 142W (Tc) Surface Mount 8-PPAK (5.1x5.86)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 87A (Tc) |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 42A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 142W (Tc) |
| Vgs(th) (Max) @ Id | 4.6V @ 250µA |
| Supplier Device Package | 8-PPAK (5.1x5.86) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 150 V |
| Gate Charge (Qg) (Max) @ Vgs | 41 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2808 pF @ 75 V |
| Qualification | - |
