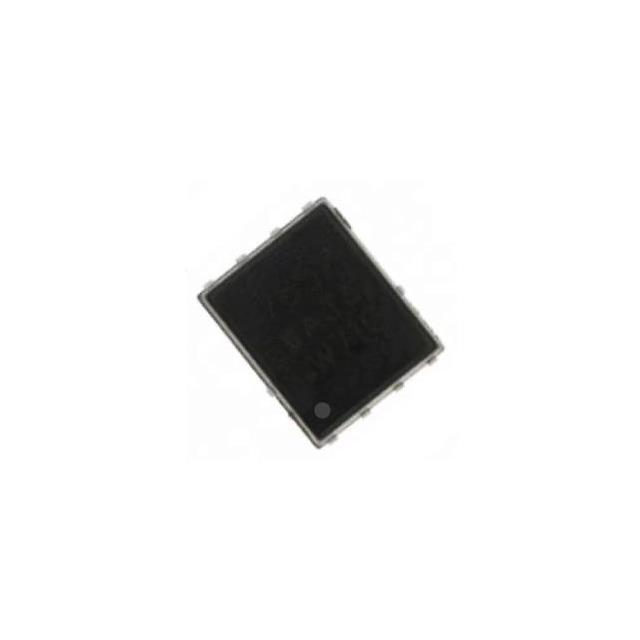

GSGP3R608
MOSFET, N-CH, SINGLE, 138.00A, 8Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 80 V 138A (Tc) 125W (Tc) Surface Mount 8-PPAK (5.1x5.86)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 138A (Tc) |
| Rds On (Max) @ Id, Vgs | 3.6mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 125W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-PPAK (5.1x5.86) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 80 V |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4435 pF @ 40 V |
| Qualification | - |
Request a Quote
