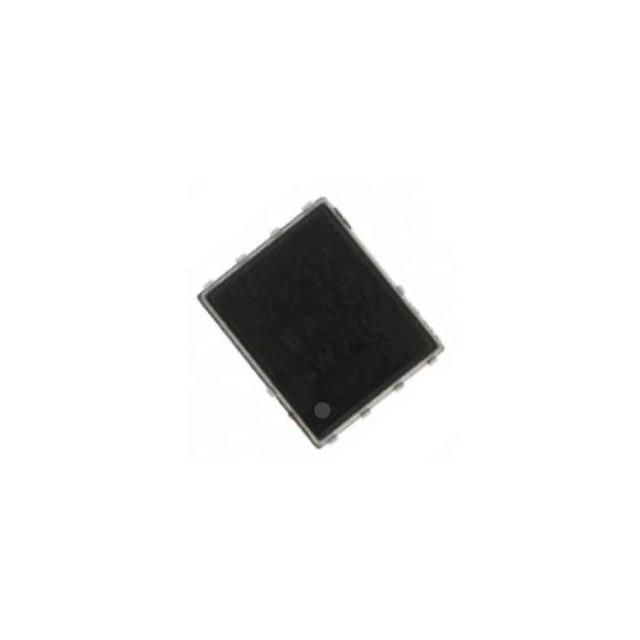

GSGP06142
MOSFET, N-CH, SINGLE, 140.00A, 6Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 60 V 140A (Tc) 110W (Tc) Surface Mount 8-PPAK (5.1x5.71)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerTDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 140A (Tc) |
| Rds On (Max) @ Id, Vgs | 2mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | 8-PPAK (5.1x5.71) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 60 V |
| Gate Charge (Qg) (Max) @ Vgs | 98 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 4947 pF @ 30 V |
