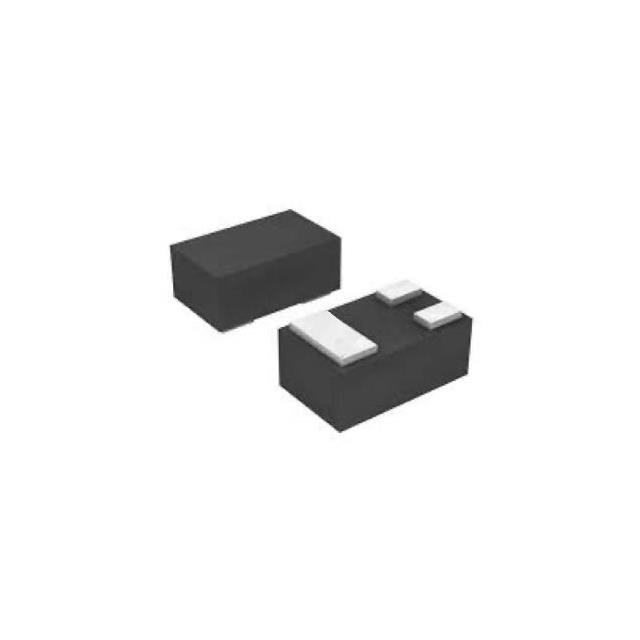

GSFW3004
MOSFET, N-CH, SINGLE, 0.40A, 30VManufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 30 V 400mA (Tc) 155mW (Ta) Surface Mount SOT-883
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Tc) |
| Rds On (Max) @ Id, Vgs | 560mOhm @ 200mA, 4.5V |
| FET Feature | - |
| Power Dissipation (Max) | 155mW (Ta) |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Supplier Device Package | SOT-883 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs (Max) | ±12V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 5.2 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 72.9 pF @ 15 V |
| Qualification | - |
