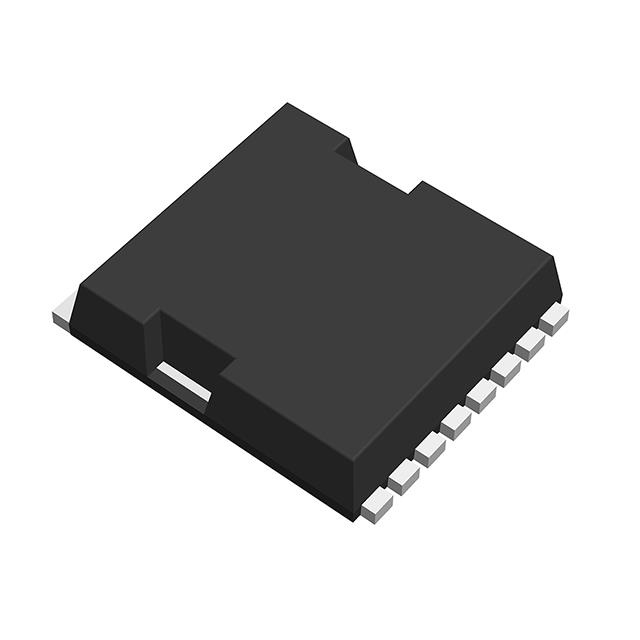

GSFTL2R710
MOSFET, N-CH, SINGLE, 200.00A, 1Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 100 V 200A (Tc) 278W (Tc) Surface Mount, Wettable Flank Toll
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerSFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 200A (Tc) |
| Rds On (Max) @ Id, Vgs | 2.7mOhm @ 60A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 278W (Tc) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Supplier Device Package | TOLL |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 100 V |
| Gate Charge (Qg) (Max) @ Vgs | 165 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 10430 pF @ 50 V |
| Qualification | - |
