GSFN3013
MOSFET, P-CH, SINGLE, -40.00A, -Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

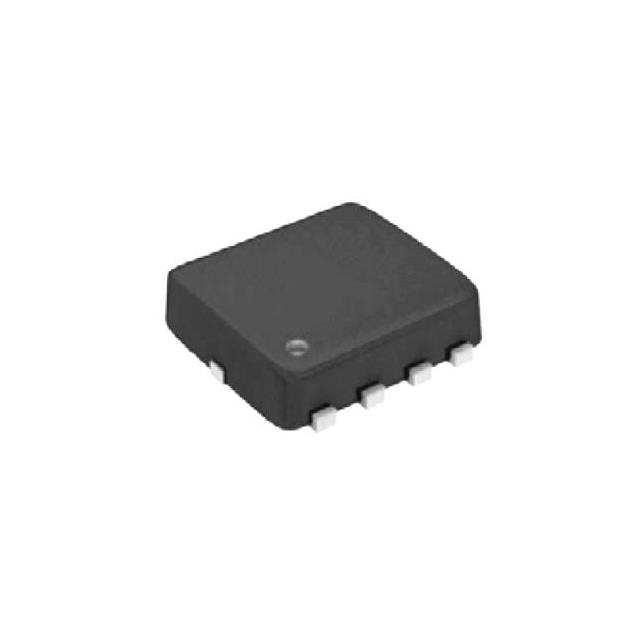

P-Channel 30 V 40A (Tc) 30W (Tc) Surface Mount 8-PPAK (3.1x3.05)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Digi-Reel®Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Digi-Reel® |
| Package / Case | 8-PowerVDFN |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 40A (Tc) |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 8A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 30W (Tc) |
| Vgs(th) (Max) @ Id | 2.9V @ 250µA |
| Supplier Device Package | 8-PPAK (3.1x3.05) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 37 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1480 pF @ 15 V |
| Qualification | - |
