GSFG65R900
MOSFET, N-CH, SINGLE, 5.00A, 650Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

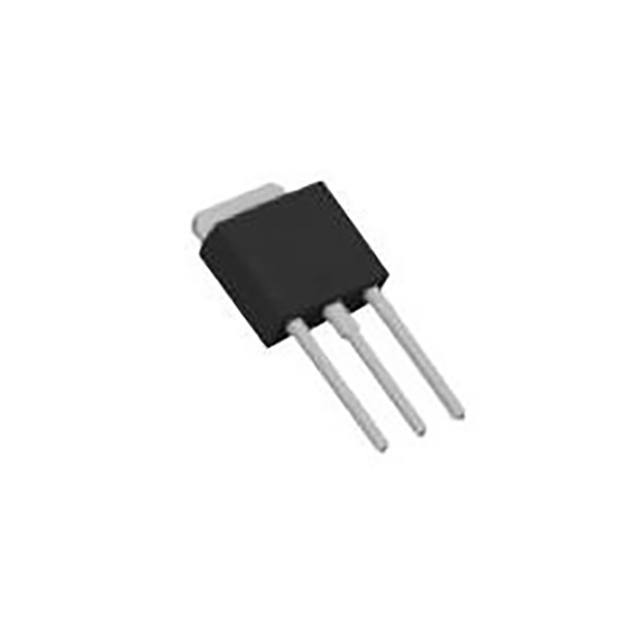

N-Channel 650 V 5A (Tc) 42W (Tc) Through Hole TO-251
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-251-3 Short Leads, IPAK, TO-251AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 5A (Tc) |
| Rds On (Max) @ Id, Vgs | 900mOhm @ 2.5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 42W (Tc) |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Supplier Device Package | TO-251 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 650 V |
| Gate Charge (Qg) (Max) @ Vgs | 13 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 300 pF @ 100 V |
| Qualification | - |
