GSFD4005
MOSFET, P-CH, SINGLE, -88.00A, -Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More

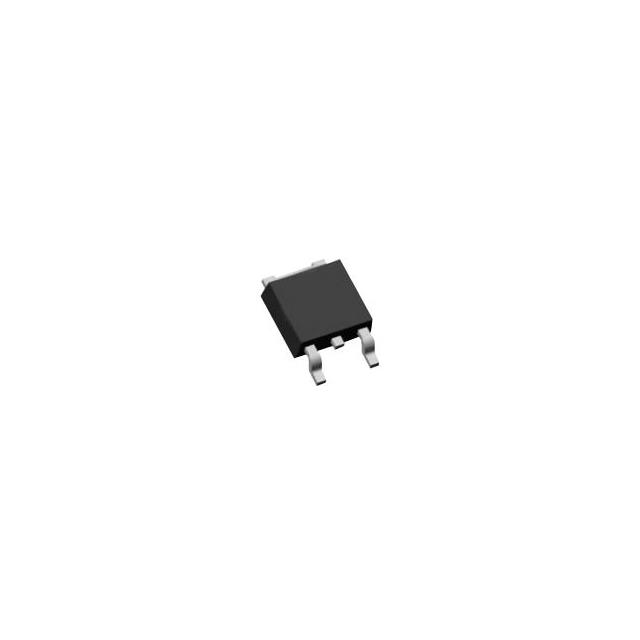

P-Channel 40 V 88A (Tj) 124W (Tj) Surface Mount TO-252 (DPAK)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 88A (Tj) |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 20A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 124W (Tj) |
| Vgs(th) (Max) @ Id | 2.8V @ 250µA |
| Supplier Device Package | TO-252 (DPAK) |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±20V |
| Drain to Source Voltage (Vdss) | 40 V |
| Gate Charge (Qg) (Max) @ Vgs | 119 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 6800 pF @ 20 V |
| Qualification | - |
