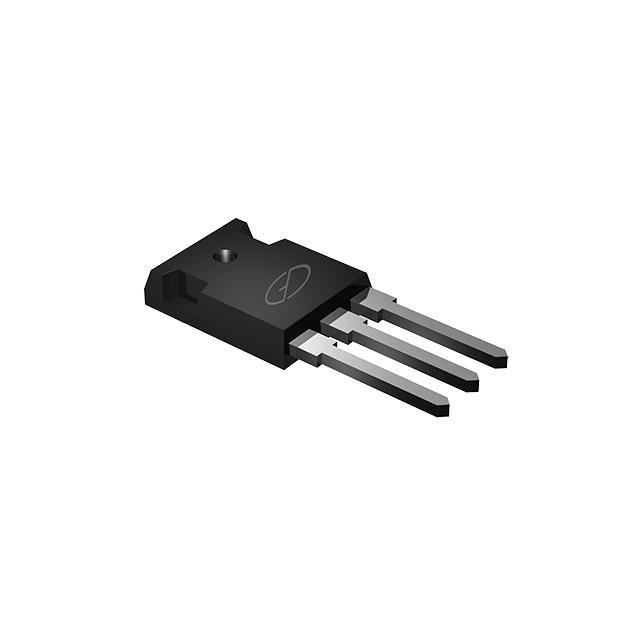

GSFA95R500
MOSFET, N-CH, SINGLE, 10.00A, 95Manufacturer: Good-Ark Semiconductor
Categories: Single FETs, MOSFETs
Quality Control: Learn More
N-Channel 950 V 10A (Tj) 151W (Tj) Through Hole TO-247
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 10A (Tj) |
| Rds On (Max) @ Id, Vgs | 500mOhm @ 5A, 10V |
| FET Feature | - |
| Power Dissipation (Max) | 151W (Tj) |
| Vgs(th) (Max) @ Id | 3.9V @ 250µA |
| Supplier Device Package | TO-247 |
| Grade | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±30V |
| Drain to Source Voltage (Vdss) | 950 V |
| Gate Charge (Qg) (Max) @ Vgs | 24 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 1568 pF @ 50 V |
| Qualification | - |
