GSR2000
RECTIFIER, HIGH VOLTAGE, 0.5A, 2Manufacturer: Good-Ark Semiconductor
Categories: Single Diodes
Quality Control: Learn More

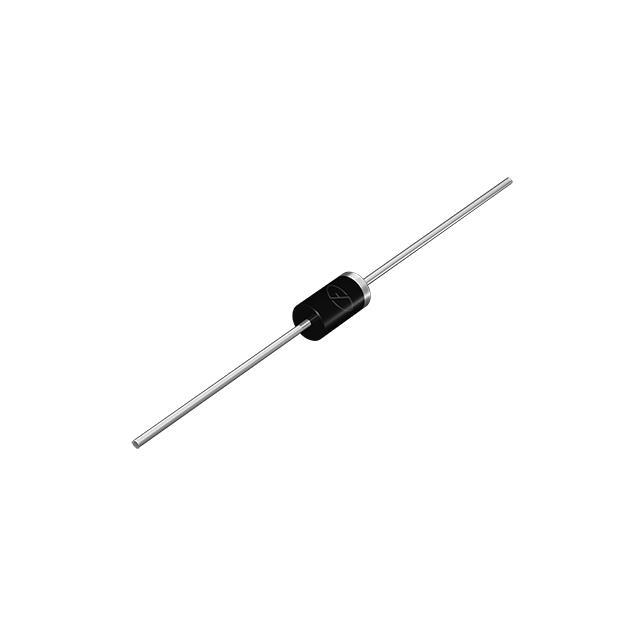

Diode 2000 V 500mA Through Hole DO-204AC (DO-15)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | DO-204AC, DO-15, Axial |
| Mounting Type | Through Hole |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 500mA |
| Supplier Device Package | DO-204AC (DO-15) |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Grade | - |
| Voltage - DC Reverse (Vr) (Max) | 2000 V |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 500 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 2000 V |
| Qualification | - |
Request a Quote
