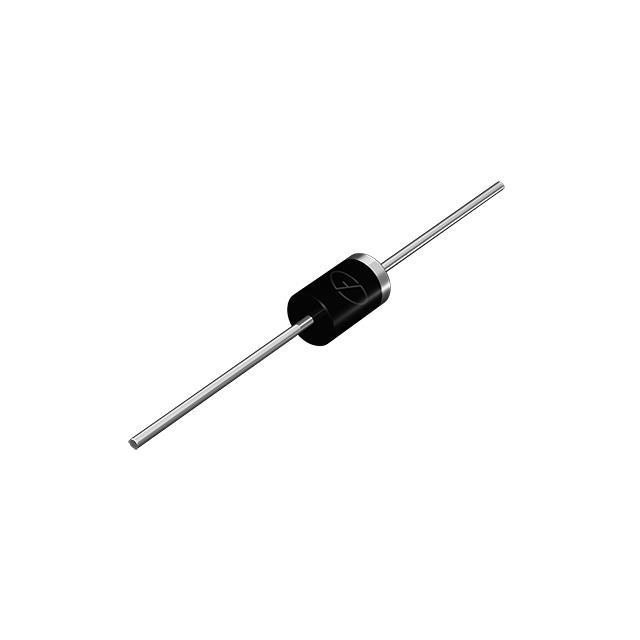

BY500-800
RECTIFIER, FAST RECOVERY, 5.0A,Manufacturer: Good-Ark Semiconductor
Categories: Single Diodes
Quality Control: Learn More
Diode 800 V 5A Through Hole DO-201AD
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | DO-201AD, Axial |
| Mounting Type | Through Hole |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200 ns |
| Technology | Standard |
| Capacitance @ Vr, F | 28pF @ 4V, 1MHz |
| Current - Average Rectified (Io) | 5A |
| Supplier Device Package | DO-201AD |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V @ 5 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 800 V |
