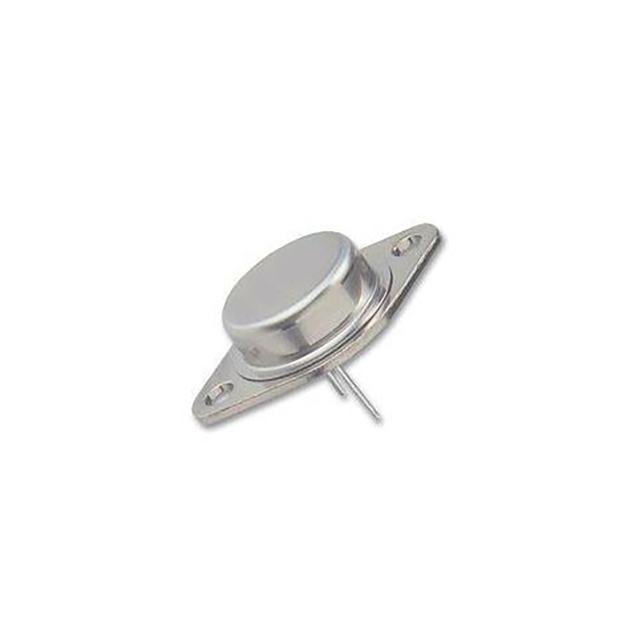

MJ15004
TRANSISTOR, PNP, -140V, -20.00A,Manufacturer: Good-Ark Semiconductor
Categories: Single Bipolar Transistors
Quality Control: Learn More
Bipolar (BJT) Transistor PNP 140 V 20 A 2MHz 250 W Through Hole TO-3
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | TO-204AA, TO-3 |
| Mounting Type | Through Hole |
| Transistor Type | PNP |
| Operating Temperature | 200°C (TJ) |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 250µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 5A, 2V |
| Frequency - Transition | 2MHz |
| Supplier Device Package | TO-3 |
| Grade | - |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 140 V |
| Power - Max | 250 W |
| Qualification | - |
