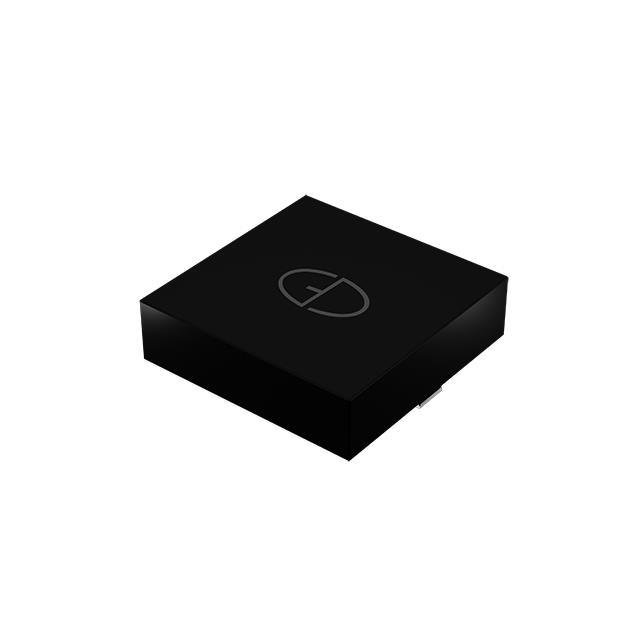

SSFN3010H
MOSFET, N-CH, DUAL, 19.50A, 30V,Manufacturer: Good-Ark Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 30V 10.8A (Ta), 19.5A (Tc) 27W (Tc) Surface Mount 8-DFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Cut Tape (CT) |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Configuration | 2 N-Channel |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 27W (Tc) |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10.8A (Ta), 19.5A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 900pF @ 25V |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 10A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 31nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | 8-DFN (3x3) |
| Grade | - |
| Qualification | - |
