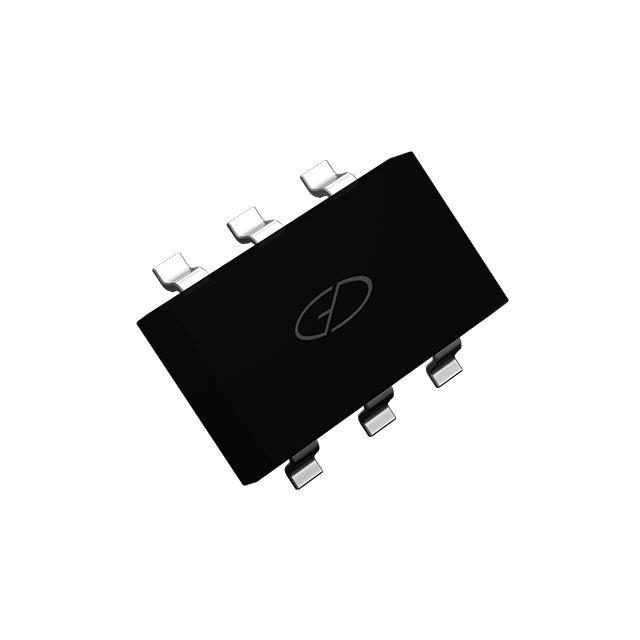

SSF2120Y
MOSFET, N+P, DUAL, 0.8 -0.4A, 20Manufacturer: Good-Ark Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 20V 800mA (Tc), 400mA (Tc) 312mW Surface Mount SOT-563
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel |
| Operating Temperature | -55°C ~ 150°C |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 312mW |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 800mA (Tc), 400mA (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 75pF @ 10V, 78pF @ 10V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 500mA, 4.5V, 600mOhm @ 300mA, 4.5V |
| Gate Charge (Qg) (Max) @ Vgs | 1nC @ 4.5V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Supplier Device Package | SOT-563 |
