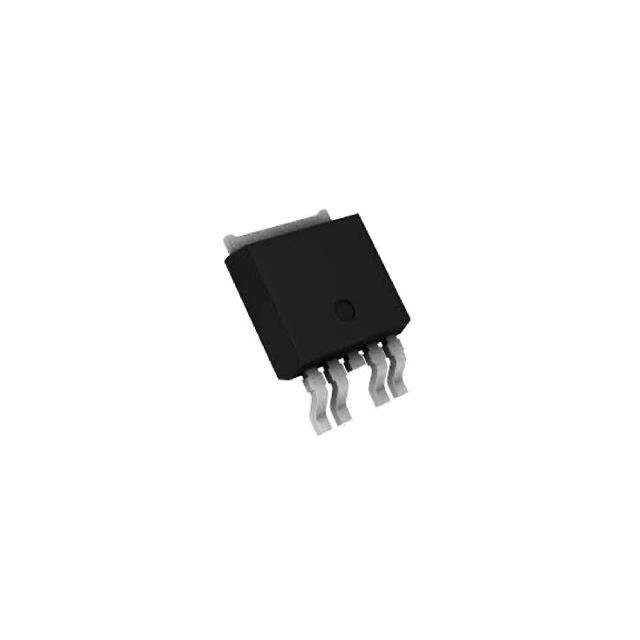

GSFD06C20
MOSFET N/P-CH 60V 19A TO252-4Manufacturer: Good-Ark Semiconductor
Categories: FET, MOSFET Arrays
Quality Control: Learn More
Mosfet Array 60V 19A (Tc), 17A (Tc) 20.1W (Tc) Surface Mount TO-252-4
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-252-5, DPAK (4 Leads + Tab), TO-252AD |
| Mounting Type | Surface Mount |
| Configuration | N and P-Channel Complementary |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| Power - Max | 20.1W (Tc) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc), 17A (Tc) |
| Input Capacitance (Ciss) (Max) @ Vds | 1720pF @ 30V, 1810pF @ 30V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 15A, 10V |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Supplier Device Package | TO-252-4 |
Request a Quote
